JOCA19ABC11

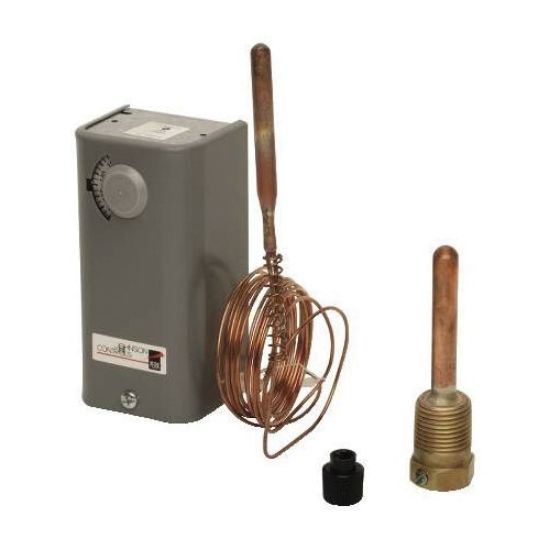

Johnson Controls A19ABC-11C Grey/Galvanized Steel 1-Stage Temperature Control, 100 - 240F, 120/240 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

1-Stage Temperature Control, A19 Series, 4-3/8 in. Length, 2-1/8 in. Width, 4-3/8 in. Height, Steel, Well Sensor Type, Colour/Finish Name: Grey/Galvanized, SPDT Switch Configuration, Depth: 1-13/16 in., 120/240 VAC Volts, 100 - 240F Control Range, FLA : 10A at 120 VAC, 6A at 240 VAC, Locked Rotor: 60A at 120 VAC, 36A at 240 VAC, 125 VA at 24 to 600 VAC Pilot Duty Contact Rating, NEMA 1 Enclosure, Switch Action: Open High (R-B), Differential Temperature: 6 - 24F

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-3/8 in.
Width	2-1/8 in.
Height	4-3/8 po
Material	Steel
Colour/Finish Name	Grey/Galvanized
Contact Rating	FLA: 10A at 120 VAC, 6A at 240 VAC, Locked Rotor: 60A at 120 VAC, 36A at 240 VAC, 125 VA at 24 to 600 VAC Pilot Duty
Control Range	100 - 240F
Depth	1-13/16 in.
Differential Temperature	6 - 24F
Enclosure	NEMA 1
Sensor Type	Well
Switch Action	Open High (R-B)
Switch Configuration	SPDT
Volts	120/240 VAC
