A19ADB-1C 100/240F 6' CAP REM BULB CTRL

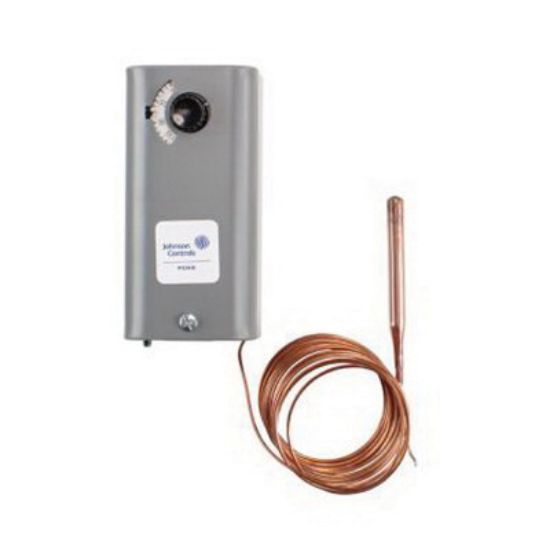

Johnson Controls A19ADB-1C Grey/Galvanized Steel 1-Stage Remote Bulb Temperature Control, 100 - 240F, 120/208/240 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-3/8 in.
Width	2-1/8 in.
Height	4-3/8 in.
Material	Steel
Bulb Size	3/8 in. Diameter x 3-1/2 in. Length
Capillary Length	6 ft.
Colour/Finish Name	Grey/Galvanized
Contact Rating	FLA: 16A at 120 VAC, 9.2A at 208 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120 VAC, 55.2A at 208 VAC, 48A at 240 VAC, Non-Inductive: 16A at 120 VAC, 9.2A at 208 VAC, 8A at 240 VAC, 125 VA at 24 to 600 VAC Pilot Duty
Control Range	100 - 240F
Depth	1-13/16 in.
Enclosure	NEMA 1
Sensor Type	Bulb
Switch Action	Open High
Switch Configuration	SPST
Volts	120/208/240 VAC
