JOCA19AGC77C

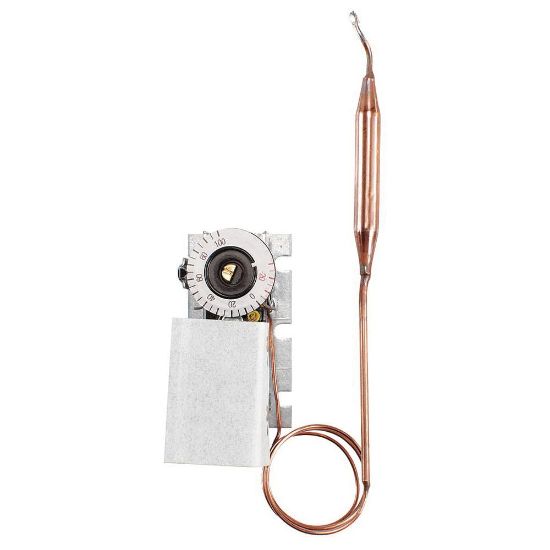

Johnson Controls A19AGC-77C Grey/Galvanized Steel Temperature Control, -30 to 100F, 120 - 277 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

Temperature Control, 4-3/8 in. Length, 2-1/8 in. Width, 4-3/8 in. Height, Steel, Bulb Sensor Type, Colour/Finish Name: Grey/Galvanized, SPDT Switch Configuration, Depth: 1-13/16 in., Bulb Size: 3/8 in. Diameter x 3 in. Length, 24 in. Capillary Length, 120 - 277 VAC Volts, -30 to 100F Control Range, Switch Ratings: 16A at 120 VDC, Inductive: 16A at 120V, 9.2A at 208V, 8A at 240V, Cooling Full Load: 16A at 120V, 8A at 240V, Cooling Locked Rotor: 96A at 120V, 48A at 240V, Full Load: 16A at 120 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120V, 48A at 240V, Resistive: 22A at 120/240/277V, 125 VA Pilot Duty Contact Rating, Mounting Type: Flat Surface, Switch Action: Open/Close on Rise, Differential Temperature: 3F, Plus or Minus 2F Accuracy

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-3/8 in.
Width	2-1/8 in.
Height	4-3/8 po
Material	Steel
Accuracy	Plus or Minus 2F
Bulb Size	3/8 in. Diameter x 3 in. Length
Capillary Length	24 in.
Colour/Finish Name	Grey/Galvanized
Contact Rating	Switch Ratings: 16A at 120 VDC, Inductive: 16A at 120V, 9.2A at 208V, 8A at 240V, Cooling Full Load: 16A at 120V, 8A at 240V, Cooling Locked Rotor: 96A at 120V, 48A at 240V, Full Load: 16A at 120 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120V, 48A at 240V, Resistive: 22A at 120/240/277V, 125 VA Pilot Duty
Control Range	-30 to 100F
Depth	1-13/16 in.
Differential Temperature	3F
Motor Type	Flat Surface
Sensor Type	Bulb
Switch Action	Open/Close on Rise
Switch Configuration	SPDT
Volts	120 - 277 VAC
