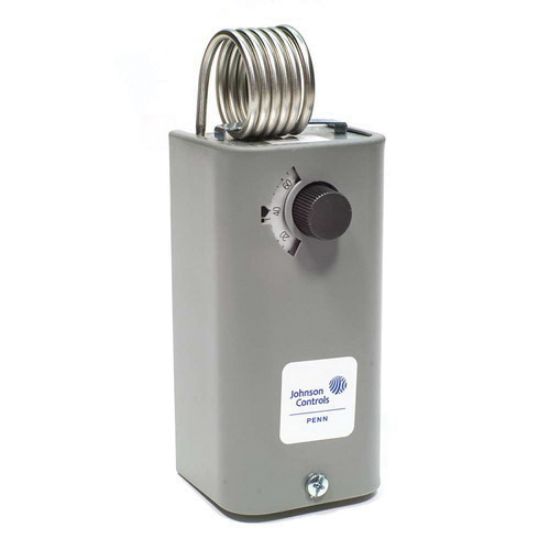

A19BBC-2CQ PENN THERMOSTAT

Johnson Controls A19BBC-2C Grey/Galvanized Coiled Bulb Space Non-Programmable Thermostat, 1-Stage, 120 - 277 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-5/8 in.
Width	2-1/8 in.
Height	4-3/8 po
Material	Steel
Colour/Finish Name	Grey/Galvanized
Contact Rating	FLA: 16A at 120 VAC, 9.2A at 208 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120 VAC, 55.2A at 208 VAC, 48A at 240 VAC, Non-Inductive: 16 and 22A at 120 - 277 VAC, 125 VA at 24 to 600 VAC Pilot Duty
Depth	1-13/16 in.
Differential Temperature	3 - 12F
Enclosure	NEMA 1
Motor Type	Flat Surface
Programmability	Non-Programmable
Sensor Element	Coil
Stages	Single
Switch Type	SPDT, Open/Close on Rise
Temperature Range	-30 to 100F
Volts	120 - 277 VAC
