JOCA28AA29

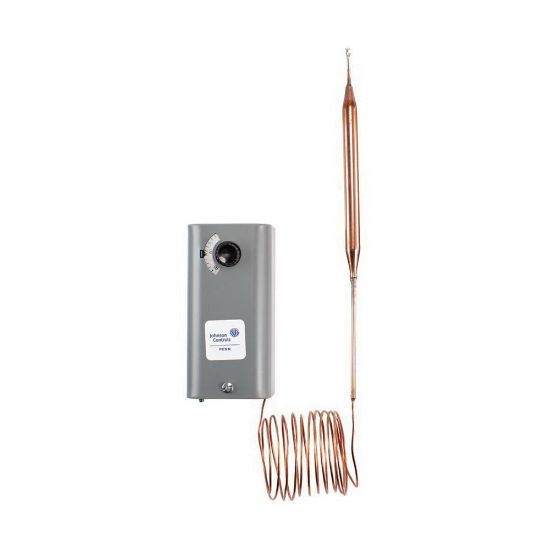

Johnson Controls A28AA-29C Grey/Galvanized Steel 2-Stage Temperature Control, -30 to 100F, 24 - 277 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

2-Stage Temperature Control, A28 Series, 4-3/8 in. Length, 2-1/8 in. Width, 4-3/8 in. Height, Material: Steel, Sensor Type: Bulb, Colour/Finish Name: Grey/Galvanized, Switch Configuration: SPDT, Depth: 1-13/16 in., Bulb Size: 4 in. Length x 3/8 in. Diameter, 8 ft. Capillary Length, 24 - 277 VAC Volts, Control Range: -30 to 100F, Contact Rating: FLA: 16A at 120 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120 VAC, 48A at 240 VAC, Inductive: 16A at 120 VAC, 9.2A at 208 VAC, 8A at 240 VAC, Resistive: 22A at 120VAC, 9.2A at 208VAC, 8A at 240 VAC, 8A at 277 VAC, 125 VA Pilot Duty, Mounting Type: Flat Surface, Switch Action: Open/Close on Rise, Differential Temperature: 2 - 7F

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-3/8 in.
Width	2-1/8 in.
Height	4-3/8 po
Material	Steel
Bulb Size	4 in. Length x 3/8 in. Diameter
Capillary Length	8 ft.
Colour/Finish Name	Grey/Galvanized
Contact Rating	FLA: 16A at 120 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120 VAC, 48A at 240 VAC, Inductive: 16A at 120 VAC, 9.2A at 208 VAC, 8A at 240 VAC, Resistive: 22A at 120VAC, 9.2A at 208VAC, 8A at 240 VAC, 8A at 277 VAC, 125 VA Pilot Duty
Control Range	-30 to 100F
Depth	1-13/16 in.
Differential Temperature	2 - 7F
Motor Type	Flat Surface
Sensor Type	Bulb
Switch Action	Open/Close on Rise
Switch Configuration	SPDT
Volts	24 - 277 VAC
