JOCA350PS1

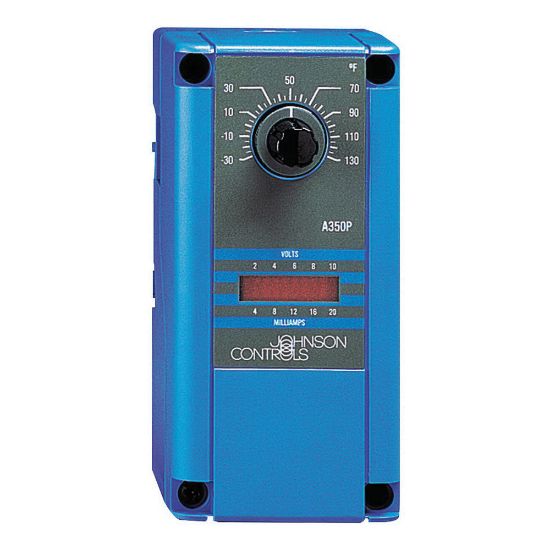

Johnson Controls A350PS-1C Blue Thermoplastic Proportional Plus Integral Temperature Control, -30 to 150F, 20 - 30 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

Proportional Plus Integral Temperature Control, A350P Series, 2-1/2 in. Width, 5 in. Height, High Impact Thermoplastic, AMP: 0 - 20mA Proportional Output, Colour/Finish Name: Blue, Depth: 2-1/2 in., 3.2 VA Power Consumption, 20 - 30 VAC, 0 - 10 VDC Proportional Output Volts, -30 to 150F Control Range, Mounting Type: Surface or DIN Rail, NEMA 1 Enclosure, 0 - 95% RH Non-Condensing Operating Humidity, Switch Action: Open/Close on Rise, 50/60Hz Frequency Rating, Differential Temperature: 1 - 30F, A99BC-25C Temperature Sensor Includes

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-1/2 in.
Height	5 po
Material	High Impact Thermoplastic
AMP	0 - 20mA Proportional Output
Colour/Finish Name	Blue
Control Range	-30 to 150F
Depth	2-1/2 in.
Differential Temperature	1 - 30F
Enclosure	NEMA 1
Frequency Rating	50/60Hz
Motor Type	Surface or DIN Rail
Operating Humidity	0 - 95% RH Non-Condensing
Power Consumption	3.2 VA
Switch Action	Open/Close on Rise
Volts	20 - 30 VAC, 0 - 10 VDC Proportional Output
