JOCA421AEC01C

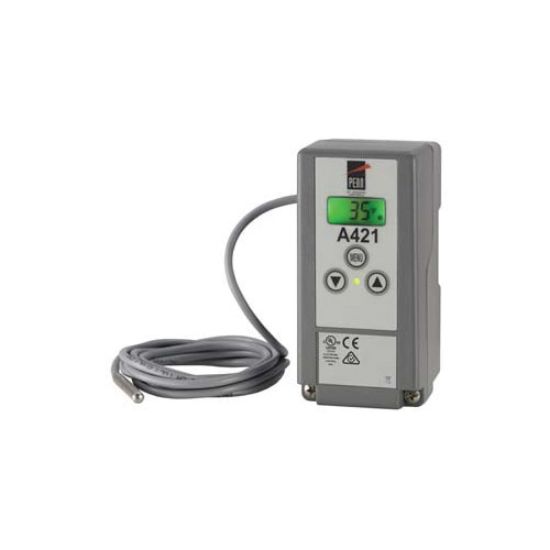

Johnson Controls A421AEC-01C Grey Thermoplastic 1-Stage Line Voltage Electronic Temperature Control, -40 to 212F, 120/240 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

1-Stage Line Voltage Electronic Temperature Control, A421 Series, 2-3/8 in. Width, 5 in. Height, High Impact Thermoplastic, Colour/Finish Name: Grey, Black/WhDisplay, SPDT Switch Configuration, Depth: 2-3/8 in., 1.8 VA Power Consumption, 120/240 VAC Volts, -40 to 212F Control Range, NEMA 4X Enclosure, Temperature Range: -40 to 150F Ambient, 0 - 95% RH Non-Condensing Operating Humidity, Switch Action: Open/Close on Rise, 1.5 x 0.5 sq-in Display Size, 50/60Hz Frequency Rating, Differential Temperature: 1 - 30F, A99BB-25C Temperature Sensor with 9-7/8 in. (0.25m) Cable Includes, Horsepower: N.O. (N.C.): 1 hp at 120/208/240 VAC

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-3/8 in.
Height	5 in.
Material	High Impact Thermoplastic
Colour/Finish Name	Grey, Black/White Display
Control Range	-40 to 212F
Depth	2-3/8 in.
Differential Temperature	1 - 30F
Display Size	1.5 x 0.5 sq-in
Enclosure	NEMA 4X
Frequency Rating	50/60Hz
Horsepower	N.O. (N.C.): 1 hp at 120/208/240 VAC
Operating Humidity	0 - 95% RH Non-Condensing
Power Consumption	1.8 VA
Switch Action	Open/Close on Rise
Switch Configuration	SPDT
Temperature Range	-40 to 150F Ambient
Volts	120/240 VAC
