JOCP100AP332C

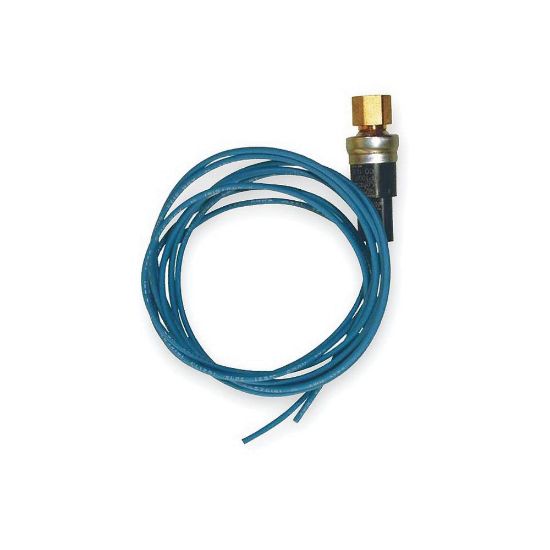

Johnson Controls P100AP-332C Encapsulated Fan Cycling Pressure Switch, 5.8A at 120 VAC, 2.9A at 240 VAC Full Load, 600psig, SPST

Manufacturer: Johnson Controls

$0.00

Qty:

Encapsulated Fan Cycling Pressure Switch, P100 Series, AMP: 5.8A at 120 VAC, 2.9A at 240 VAC Full Load, 34.8A at 120 VAC, 15A at 240 VAC Locked Rotor, End Connection 1: SAE Female Flare, Fitting Size 1: 1/4 in., Specifications - NEMA: NEMA 1, 120/240V Volts, 300psig Open, 400psig Close, 600psig Maximum Operating Pressure Rating, SPST Configuration, Electrical Connection: 48 in. Lead, Pilot Duty Rating: 375 VA at 120/240/277 VAC, 2A at 28 VAC/DC

Products specifications

products.specs.attributename	products.specs.attributevalue
AMP	5.8A at 120 VAC, 2.9A at 240 VAC Full Load, 34.8A at 120 VAC, 15A at 240 VAC Locked Rotor
Configuration	SPST
Electrical Connection	48 in. Lead
End Connection 1	SAE Female Flare
Fitting Size 1	1/4 in.
Pilot Duty Rating	375 VA at 120/240/277 VAC, 2A at 28 VAC/DC
Pressure Rating	300psig Open, 400psig Close, 600psig Maximum Operating
Specifications - NEMA	NEMA 1
Volts	120/240V
