JOCP499RCP105K

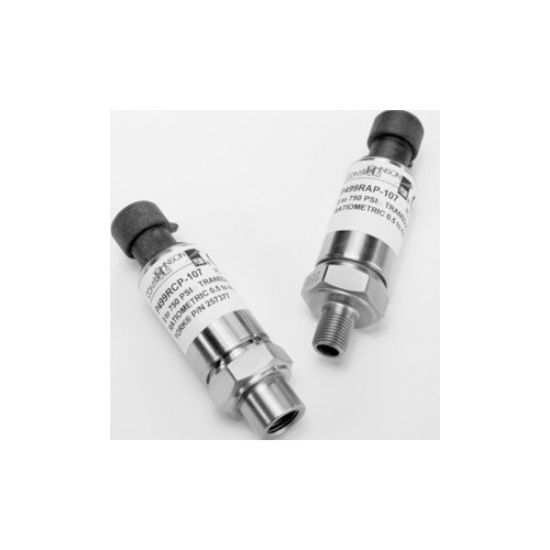

Johnson Controls P499RCP-105K Electronic Pressure Transducer Kit, Stainless Steel Port, Glass-Filled Polyetherimide Packard, 4 - 20 mA, 0.5 - 4.5 VDC Ratiometric Output, 500 psig

Manufacturer: Johnson Controls

$0.00

Qty:

Electronic Pressure Transducer Kit, Material: Stainless Steel Port, Glass-Filled Polyetherimide Packard, AMP: 4 - 20 mA, 0.5 - 4.5 VDC Ratiometric Output Volts, Maximum Temperature: -40 to 185F, Pressure - Maximum: 500 psig, Pressure Connection: 1/4 in. SAE 45 Degree Flare Internal Thread (7/16-20 UNF) with Depressor (Style 47), Connection Type: Packard

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Stainless Steel Port, Glass-Filled Polyetherimide Packard
AMP	4 - 20 mA
Connection Type	Packard
Maximum Temperature	-40 to 185F
Pressure - Maximum	500 psig
Pressure Connection	1/4 in. SAE 45 Degree Flare Internal Thread (7/16-20 UNF) with Depressor (Style 47)
Volts	0.5 - 4.5 VDC Ratiometric Output
