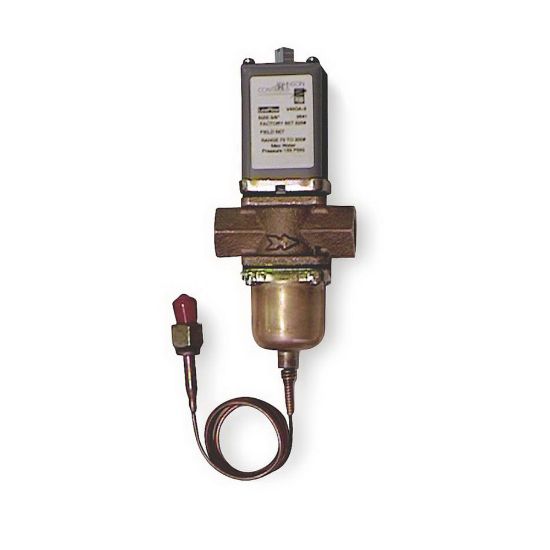

V46DA2C PENN WATER VALVE 3/8" (T15)

Johnson Controls V46DA-2C Cast Brass Commercial Low-Flow 2-Way Pressure-Actuated Direct Acting Water-Regulating Valve, 3/8 in. NPT, 70 - 260 psi Operating, 320 Design

Manufacturer: Johnson Controls

$0.00

Qty:

2-Way Pressure-Actuated Commercial Low-Flow Water-Regulating Valve, V46 Series, 2-5/8 in. Length, 1-1/2 in. Width, 6-3/4 in. Height, Cast Brass, End Connection 1: NPT, Pressure - Maximum: 70 - 260 psi Operating, 320 Design, Valve Size: 3/8 in., Maximum Temperature: 170F, Direct Acting Valve, Element Style: 30 in. Capillary, 1/4 in. Flare Nut (Style 45)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2-5/8 in.
Width	1-1/2 in.
Height	6-3/4 po
Material	Cast Brass
End Connection 1	NPT
Maximum Temperature	170F
Pressure - Maximum	70 - 260 psi Operating, 320 Design
Valve Size	3/8 in.
Valve Type	Direct Acting
