RS+F76172 LLC 11/2BRS F1960 XFPT THR ADP

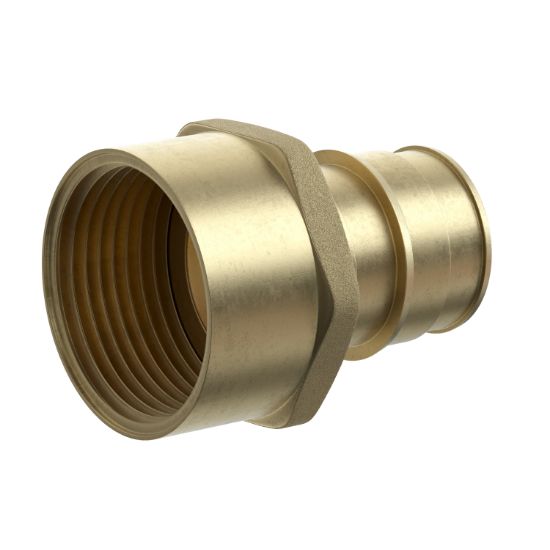

Jones Stephens F76172 1-1/2 in. F1960 x FPT Brass Adapter
Manufacturer: Jones Stephens
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Brand/Model Compatibility F1960 PEX Rings
Colour/Finish Category Brass Tones
Colour/Finish Name Brass
End Connection PEX Expansion x FIPT
End Connection 1 PEX Expansion
End Connection 2 FIPT
Fitting Size 1 1-1/2 in.
Fitting Sizes 1-1/2 in. x 1-1/2 in.
Height 2-86/10 in.
Lead Law Compliant Yes
Length 2-27/50 in.
Material Brass
Material Type C46500
Maximum Temperature 210
Pressure - Maximum 100 psi
Specifications - ANSI ANSI 14-2015;ANSI 61-2021;ANSI 372-2022
Specifications - ASTM ASTM F1960-2021
Specifications - CSA Certified CSA B137.5-2020
Specifications - FM Approved No
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14-2015;NSF 61-2021;NSF 372-2022
Specifications - NSF Certified Yes
Specifications - UL Listed No
Style Name PEX-A
Weight 0.48 lb
Width 2-43/50 in.
Product Type Brass Adapters
Fitting Size 2 1-1/2 in.
Size 1-1/2 in. x 1-1/2 in.
Application Water
Specifications - GSA Approved No
Lead Law Compliance Level Yes
