RS+ F76780 1/2 EP SWVL FCT ADPT F1960

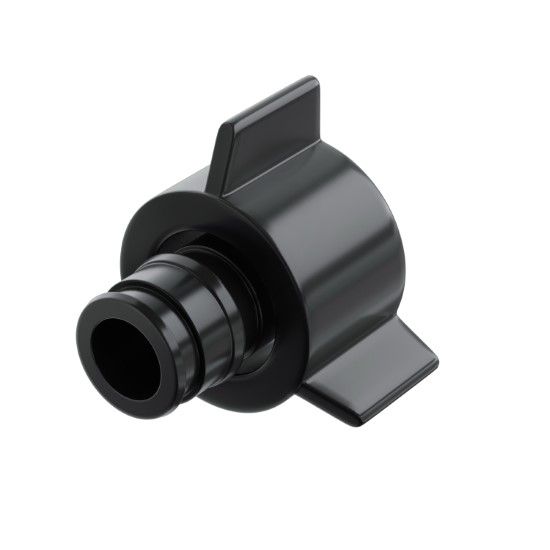

Jones Stephens F76780 Lead Free 1/2 in. F1960 Plastic/Polymer Adapter, Black
Manufacturer: Jones Stephens
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Blacks
Colour/Finish Name Black
Diameter - Inside 1 2/5 in.
Diameter - Outside 61/100 in.
End Connection F1960
End Connection 1 F1960
End Connection 2 F1960
Fitting Size 1 1/2 in.
Fitting Size 2 1/2 in.
Fitting Sizes 1/2 in. x 1/2 in.
Height 1-11/20 in.
Length 1-14/56 in.
Material Plastic;Polymer
Material Type Acudel
Maximum Temperature 210
Pressure - Maximum 150 psi
Specifications - ANSI ANSI 14 2014;ANSI 372 2011;ANSI 61 2018;ANSI 61-2018;ANSI 14-2016;ANSI 372-2011
Specifications - ASTM ASTM F1960;ASTM F877-2020
Specifications - CSA Certified CSA 372 2011;CSA 61 2018;CSA B137.5 2017;CSA B137.5 2020
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 61-2018;, NSF 14-2016;NSF 372-2011
Style Name PEX-A
Temperature Range 33 to 210 Deg F
Weight 0.03 lb
Product Type Plastic Adapters
