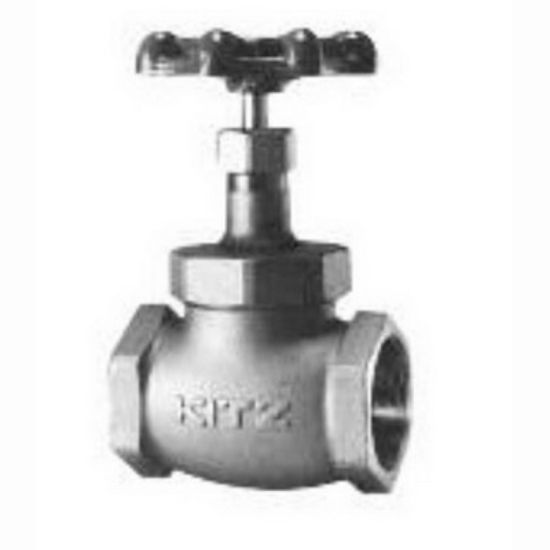

Picture of 09(AK150D) 2" THD BRS #150 GLOBE VALVE

09(AK150D) 2" THD BRS #150 GLOBE VALVE

KITZ 09 150# 2" Union Bonnet Threaded IP Globe Valve Brass
Manufacturer: Kitz
$0.00
Kitz Globe Valve, Model: 09 (AK150D), 10.12 in. Length, Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Die-Cast Aluminum Handle, Pressure - Maximum: 300 psi WOG (Cold Non-Shock), 150# Pressure Class, Specifications - ANSI: ANSI B1.20.1, Specifications - ASTM: ASTM B-62, ASTM B-283, ASTM B-16, ASTM B-86, ASTM B-536, ASTM B-85, Specifications - MSS: MSS SP-80 (Type 2), Union Valve Bonnet Type, Glass Fibre Plus PTFE Valve Disc, Valve Operator: Hand Wheel, Valve Size: 2 in., Rising Valve Stem, Cast Bronze Valve Stem, Aramid Fibres with GraphValve Packing Material, Other Physical Dimensions: 8.23 in. Open Inlet Centre to Top of Valve, 5.31 in. Wheel Diameter, 150 psi at 366F Saturated Steam and 406F Fluid Working Pressure, 46 Flow Co-Efficient (Cv)
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Threaded x Threaded
End Connection 1 Threaded
End Connection 2 Threaded
Length 10-1/8 in.
Material Cast Bronze
Pressure - Maximum 300 psi WOG
Pressure Class 150#
Size 2 in.
Specifications - ANSI ANSI B1.20.1
Specifications - MSS MSS SP-80 (Type 2)
Valve Bonnet Type Union
Valve Disc Material Glass Fibre Plus PTFE
Valve Operator Hand Wheel
Valve Size 2 in.
Valve Stem Rising
Product Type Globe Valves
