KIT16Q

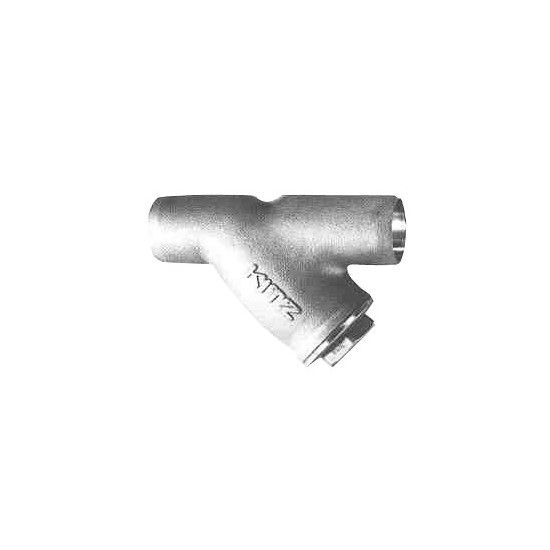

Kitz 16 (CYU) 150# Cast Bronze Y Strainer, 3/4 in., Solder Copper

Manufacturer: Kitz

$0.00

Qty:

Kitz Y Strainer, Model: 16 (CYU), 4.51 in. Length, Cast Bronze, End Connection 1: Solder Copper, Fitting Size 1: 3/4 in., Pressure - Maximum: 300 psi WOG (Cold Non-Shock), Dimension: 2.28 in. Inlet Centre to Cap End, Specifications - ANSI: ANSI B16.18, 150# Pressure Class, 150 psi at 366F Saturated Steam and 406F Fluid Working Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4.51 in.
Material	Cast Bronze
Dimension	2.28 in. Inlet Centre to Cap End
End Connection 1	Solder Copper
Fitting Size 1	3/4 in.
Pressure - Maximum	300 psi WOG (Cold Non-Shock)
Pressure Class	150#
Specifications - ANSI	ANSI B16.18
Working Pressure	150 psi at 366F Saturated Steam and 406F Fluid
