KIT6122EG8

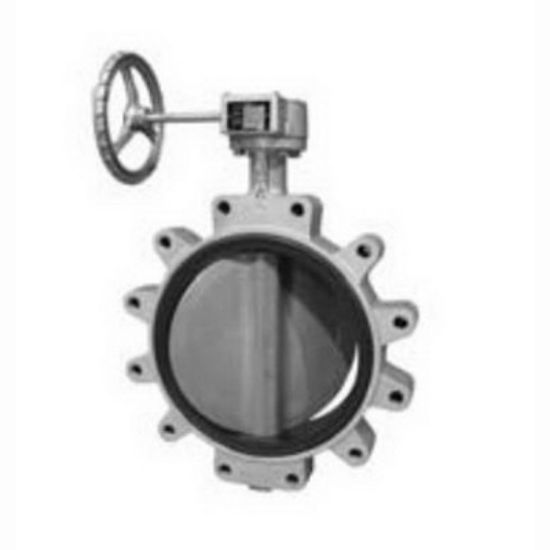

Kitz 6122EG Ductile Iron Gear Operator Lug Style Butterfly Valve, 8 in., Flanged

Manufacturer: Kitz

$0.00

Qty:

Kitz Butterfly Valve, DJ Series, Model: 6122EG, Ductile Iron, End Connection 1: Flanged, End Connection 2: Flanged, Pressure - Maximum: 200 psi, 125/150# Pressure Class, Specifications - ASTM: ASTM A-536, ASTM A-276, Specifications - MSS: MSS SP-67 and SP-25, Valve Body Style: Lug, Aluminum Bronze Valve Disc, Valve Operator: Gear Operator, NBR/EPDM Valve Seat, Valve Size: 8 in., Dimension: 11-3/4 in. Actual Outside Diameter, 7.09 in. Centre to Top of the Gear Wheel, Coating: Chromate Coating, 410 Stainless Steel Valve Stem, C95400 Material Specification

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Coating	Chromate Coating
Dimension	11-3/4 in. Actual Outside Diameter, 7.09 in. Centre to Top of the Gear Wheel
End Connection 1	Flanged
End Connection 2	Flanged
Material Specification	C95400
Pressure - Maximum	200 psi
Pressure Class	125/150#
Specifications - MSS	MSS SP-67 and SP-25
Valve Body Style	Lug
Valve Disc Material	Aluminum Bronze
Valve Operator	Gear Operator
Valve Seat Material	NBR/EPDM
Valve Size	8 in.
Valve Stem Material	410 Stainless Steel
