KIT6122EL2

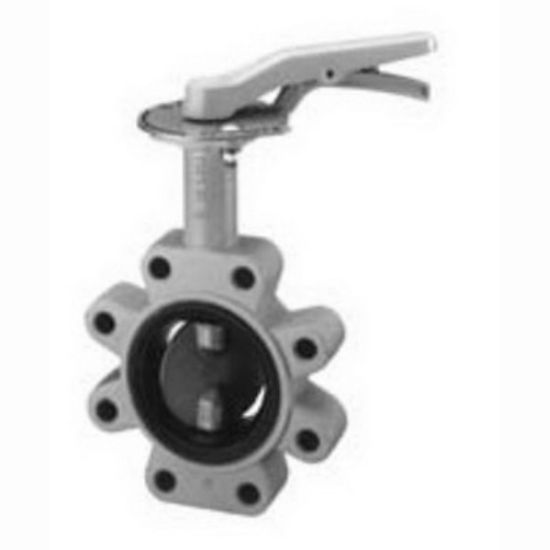

Kitz 6122EL Ductile Iron Locking Lever Handle Lug Style Butterfly Valve, 2 in., Flanged

Manufacturer: Kitz

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Coating	Chromate Coating
Dimension	4-3/4 in. Actual Outside Diameter, 7.09 in. Centre to Top of the Handle
End Connection 1	Flanged
End Connection 2	Flanged
Material Specification	C95400
Pressure - Maximum	200 psi
Pressure Class	125/150#
Specifications - MSS	MSS SP-67 and SP-25
Valve Body Style	Lug
Valve Disc Material	Aluminum Bronze
Valve Operator	Locking Lever Handle
Valve Seat Material	NBR/EPDM
Valve Size	2 in.
Valve Stem Material	410 Stainless Steel
