KIT6141EG8

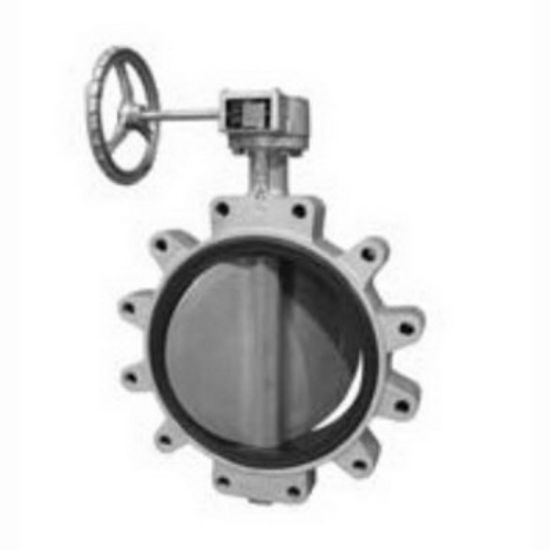

Kitz 6141EG Ductile Iron Gear Operator Lug Style Butterfly Valve, 8 in., Flanged
Manufacturer: Kitz
$0.00
Kitz Butterfly Valve, DJ Series, Model: 6141EG, Ductile Iron, End Connection 1: Flanged, End Connection 2: Flanged, Pressure - Maximum: 200 psi, 125/150# Pressure Class, Specifications - ASTM: ASTM A-536, ASTM A-276, Specifications - MSS: MSS SP-67 and SP-25, Valve Body Style: Lug, Stainless Steel Valve Disc, Valve Operator: Gear Operator, NBR/EPDM Valve Seat, Valve Size: 8 in., Dimension: 11-3/4 in. Actual Outside Diameter, 6.69 in. Centre to Top of the Gear Wheel, Coating: Chromate Coating, 410 Stainless Steel Valve Stem, CF8M Material Specification
Products specifications
products.specs.attributename products.specs.attributevalue
Material Ductile Iron
Coating Chromate Coating
Dimension 11-3/4 in. Actual Outside Diameter, 6.69 in. Centre to Top of the Gear Wheel
End Connection 1 Flanged
End Connection 2 Flanged
Material Specification CF8M
Pressure - Maximum 200 psi
Pressure Class 125/150#
Specifications - MSS MSS SP-67 and SP-25
Valve Body Style Lug
Valve Disc Material Stainless Steel
Valve Operator Gear Operator
Valve Seat Material NBR/EPDM
Valve Size 8 in.
Valve Stem Material 410 Stainless Steel
