KIT6141EL4

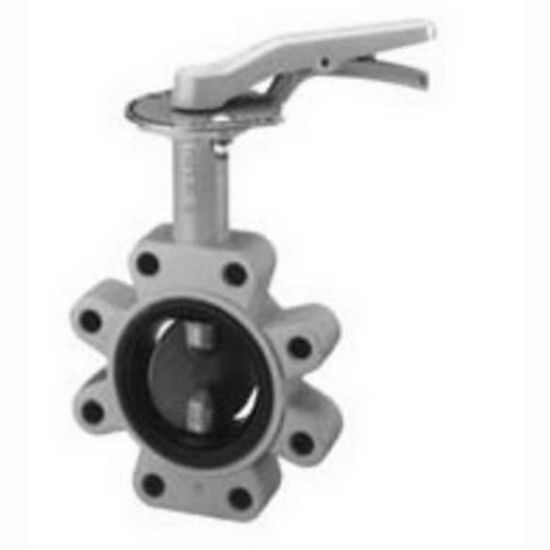

Kitz 6141EL Ductile Iron Locking Lever Handle Lug Style Butterfly Valve, 4 in., Flanged

Manufacturer: Kitz

$0.00

Qty:

Kitz Butterfly Valve, DJ Series, Model: 6141EL, Ductile Iron, End Connection 1: Flanged, End Connection 2: Flanged, Pressure - Maximum: 200 psi, 125/150# Pressure Class, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-276, Specifications - MSS: MSS SP-67 and SP-25, Valve Body Style: Lug, Stainless Steel Valve Disc, Valve Operator: Locking Lever Handle, NBR/EPDM Valve Seat, Valve Size: 4 in., Dimension: 7-1/2 in. Actual Outside Diameter, 7.09 in. Centre to Top of the Handle, Coating: Chromate Coating, 410 Stainless Steel Valve Stem, CF8M Material Specification

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Coating	Chromate Coating
Dimension	7-1/2 in. Actual Outside Diameter, 7.09 in. Centre to Top of the Handle
End Connection 1	Flanged
End Connection 2	Flanged
Material Specification	CF8M
Pressure - Maximum	200 psi
Pressure Class	125/150#
Specifications - MSS	MSS SP-67 and SP-25
Valve Body Style	Lug
Valve Disc Material	Stainless Steel
Valve Operator	Locking Lever Handle
Valve Seat Material	NBR/EPDM
Valve Size	4 in.
Valve Stem Material	410 Stainless Steel
