557K1NA DTV+ DIGITAL 3 PORT THERMO VL

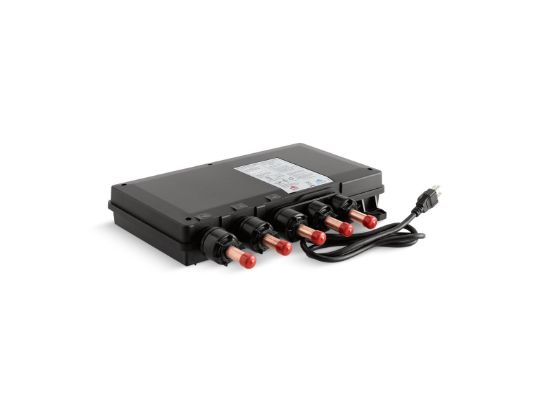

Kohler 557-K1-NA DigitaL 1/2 in. Three-Port Digital Thermostatic Valve
Manufacturer: Kohler
$0.00
For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV+ digital system, and its easy plug-and-go design makes installation simple. With three independently controllable outlet ports, this valve is ideally suited for applications where up to three shower outlets are required. Additionally, with the DTV+ system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.
Products specifications
products.specs.attributename products.specs.attributevalue
ADA Compliant No
AMP 15
Brand/Model Compatibility K-99695 DTV+ System Controller Module
End Connection 1 Sweat
End Connection 2 Sweat
End Connection 3 Sweat
Flow Rate 13 gpm
Height 2-11/16 in.
Installation Type Wall Mount
Length 13-3/8 in.
Material Brass;Plastic
Material Type Thermoplastic
Maximum Temperature 104
Power Source Electric
Specifications - ASME ASME A112.1016;ASME A112.18.1
Specifications - ASSE Standards ASSE 1016
Specifications - CSA Certified CSA B125.1;CSA B125.16
Specifications - IAPMO Listed No
Specifications - UL Listed UL 1951
Style Name DTV+
Trim Only No
Valve Size 1/2 in.
Valve Type Thermostatic Valve
Volts 110V
Product Type Thermostatic Valves
Specifications - GSA Approved No
Width 15-1/8 in.
WaterSense Labeled No
Origin USA
Specifications - CEC Compliant Not for Sale in CA
End Connection Sweat x Sweat x Sweat
Application Residential
