682-K-NA DTV SIX-PORT THERMOSTATIC VALVE

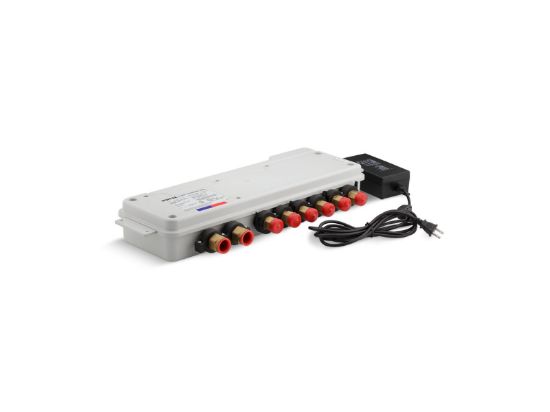

KOHLER 682-K-NA Dtv Six-Port Thermostatic Valve
Manufacturer: Kohler
$0.00
For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control. This precision-engineered, best-in-class digital thermostatic valve is used with DTV+, and its easy plug-and-go design makes installation simple. With six independently controllable outlet ports, this valve is ideal for any custom showering application. Additionally, with a DTV+ system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time. (For DTV+ systems, K-97172 DTV+ data cable is required.)
Products specifications
products.specs.attributename products.specs.attributevalue
Cartridge Type Thermostatic
End Connection 1 NPT
End Connection 2 NPT
Material Brass
ADA Compliant No
Faucet Connection Size 3/4 in
Flow Rate 21 gpm
Height 3-5/16 in
Length 22-1/4 in
Specifications - ASME ASME A112.18.1;ASME A112.1016
Specifications - ASSE Standards ASSE 1016
Specifications - CSA Certified CSA B125.1;CSA B125.16;CSA C22.2
Specifications - IAPMO Listed No
Style Name DTV
Valve Size 3/4 in
Width
Specifications - GSA Approved No
Specifications - CARB/OTC/LEED Compliant No
