76471GBN AWAKEN HYDRORAILS SET 1.75 GPM

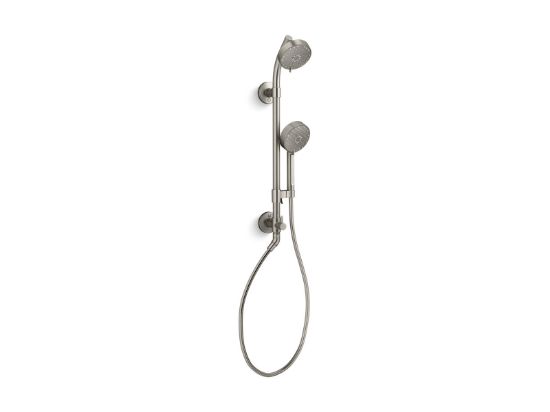

KOHLER 76471-G-BN Hydrorail-S Shower Column Kit with Awaken, 1.75 gpm

Manufacturer: Kohler

$0.00

Qty:

Create a luxurious two-outlet showering experience with this easy-to-install kit, which includes an Awaken showerhead and handshower with a HydroRail-S column and ribbon hose. Advanced spray performance delivers three distinct sprays - wide coverage, intense drenching or targeted. The artfully sculpted sprayface reveals simple, architectural forms that complement contemporary and minimalist baths.

Products specifications

products.specs.attributename	products.specs.attributevalue
Colour/Finish Name	Vibrant Brushed Nickel
Connection Type	NPT
Faucet Connection	NPT
Faucet Mount	Wall Mount
Material	Metal
Number of Handles	Single Handle
Showerhead Function	Multi
Spray Type	Intense Drenching;Targeted Spray;Wide Coverage
ADA Compliant	Yes
Depth	6-1/4 in
Faucet Connection Size	1/2 in
Height	25-3/8 in
Hose Included	Yes
Hose Length	60 in
Pressure - High	45 psi
Specifications - ANSI	ANSI A117.1
Specifications - ASME	ASME A112.18.1
Specifications - CSA Certified	CSA B125.1
Specifications - IAPMO Listed	Yes
Specifications - NSF Certified	No
Specifications - UL Listed	No
Style Name	HydroRail-S
Trim Only	No
WaterSense Labeled	Yes
Specifications - GSA Approved	No
Specifications - CARB/OTC/LEED Compliant	No
Specifications - EPA Compliant	Yes
Hand Shower Flow Rate	1.75 gpm
Showerhead Flow Rate	1.75 gpm
Escutcheon Width	3 in
Escutcheon Height	3 in
Slide Bar Height	18 in
