96053SS0 WELLCOMME ULTRA BWL TOP SPUD

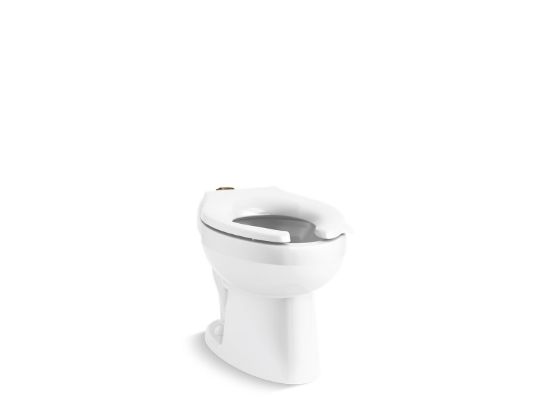

KOHLER 96053-SS-0 Wellcomme Ultra Floor-Mounted Top Spud Antimicrobial Flushometer Bowl
Manufacturer: Kohler
$0.00
The Wellcomme Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design. Measuring 15-1/4" to the top of the rim, the Wellcomme Ultra is perfect for smaller restrooms and stalls. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. This Wellcomme Ultra is listed from 1.1 to 1.6 gpf but can operate at 1.0 gpf. It performs well at every flush interval, making it uniquely effective with dual flush valves. It has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Name White
Flush Type Siphon Jet
Material Vitreous China
Spud Location Top
Toilet Type Bowl
ADA Compliant No
Flow Rate 1.6 gpf
Pressure - High 80 psi
Pressure - Low 25 psi
Specifications - ASME ASME A112.19.2
Specifications - CSA Certified CSA B45.1
Specifications - IAPMO Listed Yes
Specifications - NSF Certified No
Style Name Wellcomme Ultra
Toilet Bowl Height 15-3/16 in
Toilet Bowl Length 26-3/8 in
Toilet Bowl Width 15 in
Toilet Rough-In 12 in
WaterSense Labeled Yes
Specifications - GSA Approved No
Specifications - CARB/OTC/LEED Compliant No
Specifications - EPA Compliant Yes
Specifications - BAA Compliant No
Specifications - MA Approved No
Trap Size 2-1/8 in
Toilet Seat Included No
Dual Flush No
Spud Size 1-1/2 in
