96058SSL0 HIGHCLIFF ULTRA BWL W/LUGS

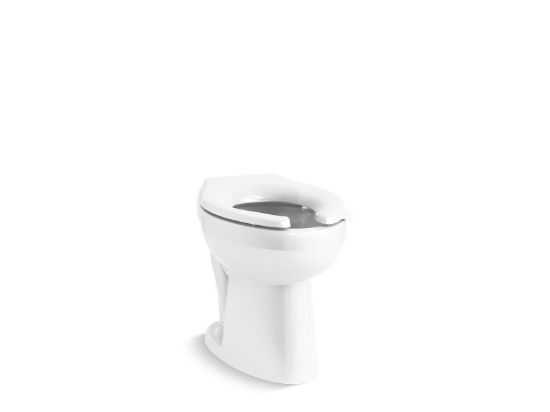

KOHLER 96058-SSL-0 Highcliff Ultra Floor-Mounted Rear Spud Antimicrobial Flushometer Bowl with Bedpan Lugs
Manufacturer: Kohler
$0.00
This Highcliff Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design with bedpan lugs. Measuring 16-7/8" to the top of the rim, the Highcliff Ultra meets both ADA and CSA height requirements. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Highcliff Ultra is listed from 1.1 to 1.6 gpf but can operate at 1.0 gpf. It performs well at every flush interval, making it uniquely effective with dual flush valves. It has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Name White
Installation Type Floor Mount
Material Vitreous China
Spud Location Rear
Toilet Type Bowl
ADA Compliant Yes
Depth 26-1/8 in
Flow Rate 1.6 gpf
Height 16-5/8 in
Length 26-1/8 in
Specifications - ANSI A117.1
Specifications - ASME A112.19.2
Specifications - CSA Certified Yes
Specifications - IAPMO Listed No
Style Name Highcliff
Toilet Bowl Height 16-7/8 in
Toilet Bowl Length 26-3/8 in
Toilet Bowl Width 14-5/8 in
Toilet Rough-In 11 in
WaterSense Labeled Yes
Weight 52 lb
Specifications - GSA Approved No
Specifications - CARB/OTC/LEED Compliant No
Specifications - BAA Compliant No
Overall Width 14-7/8 in
Overall Length 26-3/8 in
Overall Height 16-5/8 in
Overall Depth 26-3/8 in
cUPC Certified Yes
Specifications - MA Approved No
Toilet Seat Included No
Spud Size 1-1/2 in
