C++ HH-1200 NAT.GAS,HI-ALT,2-STG BOILER

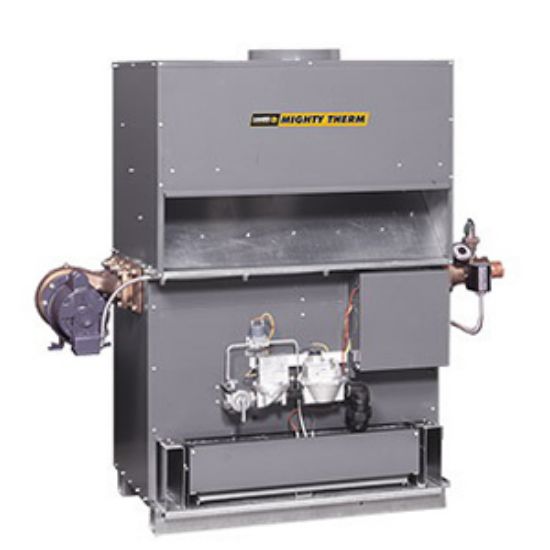

Laars Mighty Therm HH 1200 Indoor High Altitude 2-Stage Natural Gas Boiler, 115V, 5.8A, 1 PH, 1200000 btu/hr Input, 984000 btu/hr Output

Manufacturer: Larrs Heating

$0.00

Qty:

Mighty Therm Indoor High Altitude 2-Stage Gas Boiler, 83.57 in. Length, 29-3/4 in. Width, 58 in. Height, Material: Galvanized Steel Jacket, AMP: 5.8A, 984000 btu/hr Output BTU, Fuel Type: Natural Gas, Electronic Ignition System, Input: 1200000 btu/hr, Specifications - ANSI: ANSI Z21.13, Specifications - ASME: ASME Section IV, Supply Pipe Connection Size: 1-1/4 in. NPT Gas, 2-1/2 in. NPT Water, 115V Volts, 352kW Input, 288kW Output Watts, Pressure - Maximum: 75 psi Relief Valve, 160 psi Heat Exchanger, Horsepower: 1/2 hp, Vent Size: 6 in., Flow Rate: 94 gpm at 20F, 6.5 ft. at 20F Pressure Drop, Colour/Finish Name: Acrylic, 82% Thermal Efficiency, Phase: 1 PH, NET IBR Rating: 856000 btu/hr

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	83.57 in.
Width	29-3/4 in.
Height	58 in.
Material	Galvanized Steel Jacket
AMP	5.8A
BTU	984000 btu/hr Output
Colour/Finish Name	Acrylic
Fuel Type	Natural Gas
Horsepower	1/2 hp
Ignition System	Electronic
Input	1200000 btu/hr
NET IBR Rating	856000 btu/hr
Phase	1 PH
Pressure - Maximum	75 psi Relief Valve, 160 psi Heat Exchanger
Pressure Drop	6.5 ft. at 20F
Specifications - ANSI	ANSI Z21.13
Specifications - ASME	ASME Section IV
Supply Pipe Connection Size	1-1/4 in. NPT Gas, 2-1/2 in. NPT Water
Thermal Efficiency	82%
Vent Size	6 in.
Volts	115V
Watts	352kW Input, 288kW Output
