LIB2484LSG20248

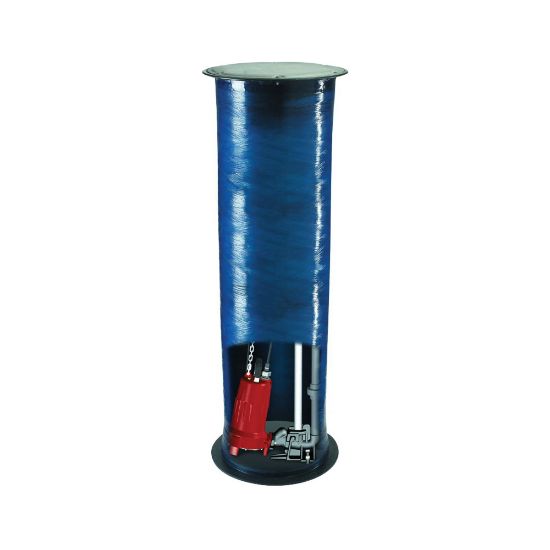

Liberty Pumps 2484LSG202-48, 2 hp, 1PH, 208/230V, 1-1/4" Discharge with 24" x 84" basin and Simplex control panel

Manufacturer: Liberty Pumps

$0.00

Qty:

Omnivore Pre-Assembled Simplex Grinder Package, 2484 Series, 84 in. Height, Material: Class 25 Cast Iron, 163 gal Capacity, Diameter: 24 in. Inside x 30 in. Outside, Flow Rate: 50 gpm at 10 ft. Dynamic Head, Horsepower: 2 hp, Impeller: Stainless Steel, 110 ft. Maximum Head, Maximum Temperature: 60C Liquid, 135C Thermal Overload and Stator, Capacitor Start Class B Pump Motor, Pump Mounting: Freestanding, 1 PH Pump, 1 Pump Stage, RPM: 3450 RPM, Turn On/Turn Off Levels: Turn-on 33 in./Turn-off 13 in., 208 - 230V at 60 Hz, 208 - 230V Volts, 1-1/4 in. Discharge, AMP: 15A Full Load, 53A Locked Rotor, 25 ft. Cord, Colour/Finish Name: Powder Coated Paint, Discharge Connection: NPT, Discharge Depth: 48 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	84 in.
Material	Class 25 Cast Iron
AMP	15A Full Load, 53A Locked Rotor
Capacity	163 gal
Colour/Finish Name	Powder Coated Paint
Cord Length	25 ft.
Diameter	24 in. Inside x 30 in. Outside
Discharge	1-1/4 in.
Discharge Connection	NPT
Horsepower	2 hp
Impeller	Stainless Steel
Maximum Feet of Head	110 ft.
Maximum Temperature	60C Liquid, 135C Thermal Overload and Stator
Pump Motor Type	Capacitor Start Class B
Pump Mounting	Freestanding
Pump Phase	1 PH
Pump Stage	1
RPM	3450 RPM
Turn On/Turn Off Levels	Turn-on 33 in./Turn-off 13 in.
VAC at 60 Hz	208 - 230V
Volts	208 - 230V
