LIB2832

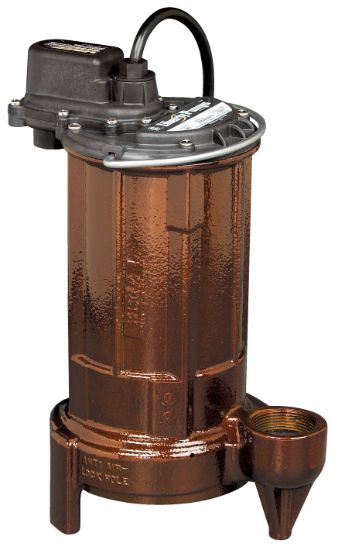

Liberty Pumps 283-2, 1/2 hp, Submersible Sump/Effluent Pump, Cast iron, wide angle float with series plug, 115V, 25' cord

Manufacturer: Liberty Pumps

$0.00

Qty:

Automatic Submersible Effluent Pump, 280 Series, Model: 283, 9-1/2 in. Length, 6.4 in. Width, 13.2 in. Height, Temperature Rating: 140F Fluid, 221F Thermal Overload, 266F Stator, Flow Rate: 62 gpm, Colour/Finish Name: Epoxy Coated, 115V Volts, 60Hz Frequency Rating, AMP: 8A Full Load, 23A Locked Rotor, 3450 RPM, Horsepower: 1/2 hp, 37 ft. Maximum Head, 1-1/2 in. NPT Discharge, 25 ft. Cord, Impeller: Vortex Back Vane, Pump Body Material: Class 25 Cast Iron, PSC Class B Pump Motor, 1 PH Pump, Turn On/Turn Off Levels: Turn-on 13 in./Turn-off 7 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9-1/2 in.
Width	6.4 in.
Height	13.2 po
AMP	8A Full Load, 23A Locked Rotor
Colour/Finish Name	Epoxy Coated
Cord Length	25 ft.
Discharge	1-1/2 in. NPT
Frequency Rating	60Hz
Horsepower	1/2 hp
Impeller	Vortex Back Vane
Maximum Feet of Head	37 ft.
Pump Body Material	Class 25 Cast Iron
Pump Motor Type	PSC Class B
Pump Phase	1 PH
RPM	3450 RPM
Temperature Rating	140F Fluid, 221F Thermal Overload, 266F Stator
Turn On/Turn Off Levels	Turn-on 13 in./Turn-off 7 in.
Volts	115V
