2902 3/4HP 1PH 115V 25" CRD 1-1/2" DSCH"

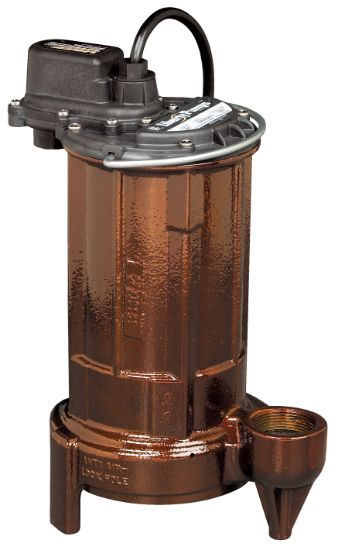

Liberty Pumps 290-2, 3/4 hp, Submersible Sump/Effluent Pump, 1PH, 115V, Cast iron, manual, 25' cord

Manufacturer: Liberty Pumps

$0.00

Qty:

Manual Submersible Sump/Effluent Pump, 290 Series, 9-1/2 in. Length, 6.3 in. Width, 13 in. Height, Material: Cast Iron, AMP: 10.4A Full Load, 24A Locked Rotor, Colour/Finish Name: Powder Coated, 25 in. Cord, 1-1/2 in. Discharge, Flow Rate: 78 gpm, Horsepower: 3/4 hp, Impeller: Semi-Open, Vortex, Material Type: Class 25, PSC Class B Pump Motor, 1 PH Pump, RPM: 3450 RPM, 115V Volts, Fitting Size 1: 3/4 in. Solid Handling, 60Hz Frequency Rating, 48 ft. Maximum Head, Temperature Rating: 140F Liquid, 248F Thermal Overload, 266F Stator, NPT Discharge Connection

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9-1/2 in.
Width	6.3 in.
Height	13 in.
Material	Cast Iron
AMP	10.4A Full Load, 24A Locked Rotor
Colour/Finish Name	Powder Coated
Cord Length	25 in.
Discharge	1-1/2 in.
Discharge Connection Type	NPT
Fitting Size 1	3/4 in. Solid Handling
Frequency Rating	60Hz
Horsepower	3/4 hp
Impeller	Semi-Open, Vortex
Material Type	Class 25
Maximum Feet of Head	48 ft.
Pump Motor Type	PSC Class B
Pump Phase	1 PH
RPM	3450 RPM
Temperature Rating	140F Liquid, 248F Thermal Overload, 266F Stator
Volts	115V
