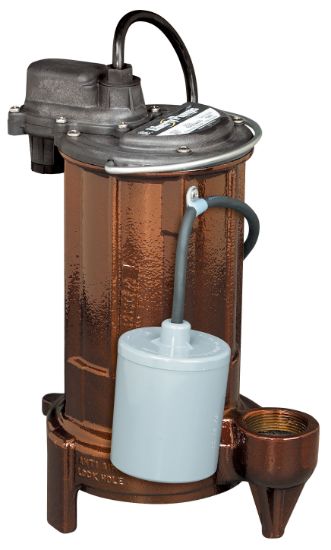

293-2 3/4 HP EFFLUENT PUMP W/25'' CORD

Liberty Pumps 293-2, 3/4 hp, Submersible Sump/Effluent Pump, 1PH, 115V, Cast iron, wide angle float with series plug, 25' cord

Manufacturer: Liberty Pumps

$0.00

Qty:

Automatic Submersible Effluent Pump, 290 Series, Model: 293, 9-1/2 in. Length, 6.3 in. Width, 13 in. Height, Temperature Rating: 140F Fluid, 248F Thermal Overload, 266F Stator, Flow Rate: 78 gpm, Colour/Finish Name: Epoxy Coated, 115V Volts, 60Hz Frequency Rating, AMP: 10.4A Full Load, 24A Locked Rotor, 3450 RPM, Horsepower: 3/4 hp, 48 ft. Maximum Head, 1-1/2 in. NPT Discharge, 25 ft. Cord, Impeller: Vortex, Semi-Open, Pump Body Material: Class 25 Cast Iron, PSC Class B Pump Motor, 1 PH Pump, Turn On/Turn Off Levels: Turn-on 13 in./Turn-off 7 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9-1/2 in.
Width	6.3 in.
Height	13 po
AMP	10.4A Full Load, 24A Locked Rotor
Colour/Finish Name	Epoxy Coated
Cord Length	25 ft.
Discharge	1-1/2 in. NPT
Frequency Rating	60Hz
Horsepower	3/4 hp
Impeller	Vortex, Semi-Open
Maximum Feet of Head	48 ft.
Pump Body Material	Class 25 Cast Iron
Pump Motor Type	PSC Class B
Pump Phase	1 PH
RPM	3450 RPM
Temperature Rating	140F Fluid, 248F Thermal Overload, 266F Stator
Turn On/Turn Off Levels	Turn-on 13 in./Turn-off 7 in.
Volts	115V
