LIBFL105M2

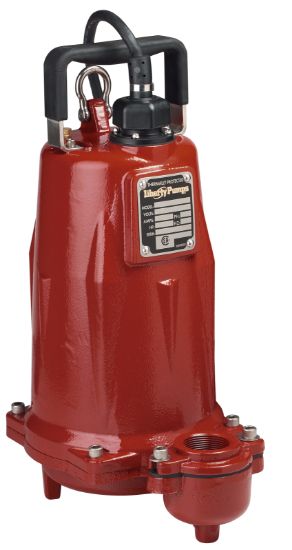

Liberty Pumps FL105M-2, 1 HP, Effluent Pump, 3 PH, 575V, 25' cord, 1.5" / 2" disch., Manual

Manufacturer: Liberty Pumps

$0.00

Qty:

Manual High Head Submersible Effluent Pump, FL100 Series, 11.8 in. Length, 18.3 in. Height, Material: Cast Iron, AMP: 3.3A Full Load, 13A Locked Rotor, Colour/Finish Name: Powder Coated, 25 ft. Cord, Discharge Size: 1-1/2 or 2 in., Flow Rate: 98 gpm, Horsepower: 1 hp, Impeller: 2-Vane, Semi-Open, Material Type: Class 25, PSC Class B Pump Motor, Pump Mounting: Freestanding, 3 PH Pump, RPM: 3450 RPM, 575V Volts, Fitting Size 1: 3/4 in. Solid Handling, 60Hz Frequency Rating, 90 ft. Maximum Head, Temperature Rating: 140F Liquid, 266F Stator, Discharge Connection: Flanged

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11.8 in.
Height	18.3 in.
Material	Cast Iron
AMP	3.3A Full Load, 13A Locked Rotor
Colour/Finish Name	Powder Coated
Discharge Connection	Flanged
Discharge Size	1-1/2 or 2 in.
Fitting Size 1	3/4 in. Solid Handling
Frequency Rating	60Hz
Horsepower	1 hp
Impeller	2-Vane, Semi-Open
Material Type	Class 25
Maximum Feet of Head	90 ft.
Pump Motor Type	PSC Class B
Pump Mounting	Freestanding
Pump Phase	3 PH
RPM	3450 RPM
Temperature Rating	140F Liquid, 266F Stator
Volts	575V
