LIBFL202A2

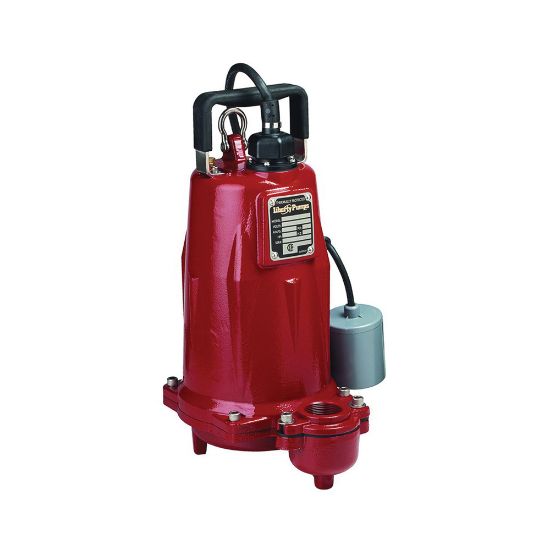

Liberty Pumps FL202A-2, 2 HP, Effluent Pump, 1 PH, 208-230V, 25' cord, 1.5" / 2" disch., Auto
Manufacturer: Liberty Pumps
$0.00
Automatic High Head Submersible Effluent Pump, FL200 Series, 11.8 in. Length, 8.2 in. Width, 18-1/2 in. Height, Material: Cast Iron, AMP: 15A Full Load, 53A Locked Rotor, Colour/Finish Name: Powder Coated, 25 ft. Cord, Discharge Size: 1-1/2 or 2 in., Flow Rate: 102 gpm, Horsepower: 2 hp, Impeller: 2-Vane, Semi-Open, Material Type: Class 25, PSC Class B Pump Motor, Pump Mounting: Freestanding, 1 PH Pump, RPM: 3450 RPM, 208 - 230V Volts, Fitting Size 1: 3/4 in. Solid Handling, 60Hz Frequency Rating, 130 ft. Maximum Head, Temperature Rating: 140F Liquid, 275F Thermal Overload, 275F Stator, Discharge Connection: Flanged
Products specifications
products.specs.attributename products.specs.attributevalue
Length 11.8 in.
Width 8.2 in.
Height 18-1/2 in.
Material Cast Iron
AMP 15A Full Load, 53A Locked Rotor
Colour/Finish Name Powder Coated
Discharge Connection Flanged
Discharge Size 1-1/2 or 2 in.
Fitting Size 1 3/4 in. Solid Handling
Frequency Rating 60Hz
Horsepower 2 hp
Impeller 2-Vane, Semi-Open
Material Type Class 25
Maximum Feet of Head 130 ft.
Pump Motor Type PSC Class B
Pump Mounting Freestanding
Pump Phase 1 PH
RPM 3450 RPM
Temperature Rating 140F Liquid, 275F Thermal Overload, 275F Stator
Volts 208 - 230V
