LIBFL62M2

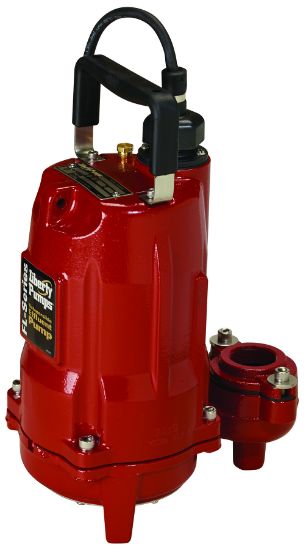

Liberty Pumps FL62M-2, 6/10 HP, Effluent Pump, 1 PH, 208-230V, 25' Cord, 1-1/2" Discharge, Manual

Manufacturer: Liberty Pumps

$0.00

Qty:

Manual Mid-Range Head Submersible Effluent Pump, FL60 Series, 11.2 in. Length, 7 in. Width, 16.4 in. Height, Material: Cast Iron, AMP: 8.2A Full Load, 24.1A Locked Rotor, Colour/Finish Name: Powder Coated, 25 ft. Cord, Discharge Size: 1-1/2 or 2 in., Flow Rate: 85 gpm, Horsepower: 6/10 hp, Impeller: Multi-Vane, Semi-Open, Material Type: Class 25, PSC Class B Pump Motor, Pump Mounting: Freestanding, 1 PH Pump, RPM: 3450 RPM, 208 - 230V Volts, Fitting Size 1: 3/4 in. Solid Handling, 60Hz Frequency Rating, 65 ft. Maximum Head, Temperature Rating: 140F Liquid, 248F Thermal Overload, 266F Stator, Discharge Connection: Flanged

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11.2 in.
Width	7 in.
Height	16.4 po
Material	Cast Iron
AMP	8.2A Full Load, 24.1A Locked Rotor
Colour/Finish Name	Powder Coated
Discharge Connection	Flanged
Discharge Size	1-1/2 or 2 in.
Fitting Size 1	3/4 in. Solid Handling
Frequency Rating	60Hz
Horsepower	6/10 hp
Impeller	Multi-Vane, Semi-Open
Material Type	Class 25
Maximum Feet of Head	65 ft.
Pump Motor Type	PSC Class B
Pump Mounting	Freestanding
Pump Phase	1 PH
RPM	3450 RPM
Temperature Rating	140F Liquid, 248F Thermal Overload, 266F Stator
Volts	208 - 230V
