LIBFL72A2

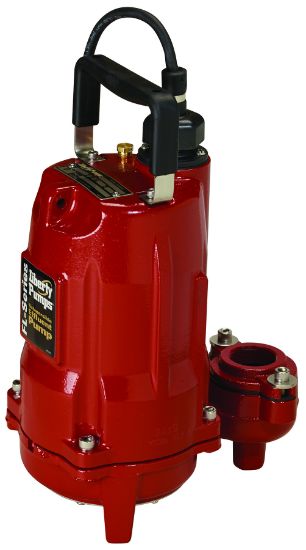

Liberty Pumps FL72A-2, 3/4 HP, Effluent Pump, 1 PH, 208-230V, 25' Cord, 1-1/2" Discharge, Auto

Manufacturer: Liberty Pumps

$0.00

Qty:

Automatic Submersible Effluent Pump, FL Series, Model: FL72, 11.2 in. Length, 7 in. Width, 12.8 in. Height, Temperature Rating: 140F Fluid, 248F Thermal Overload, 266F Motor, Flow Rate: 87 gpm, Colour/Finish Name: Powder Coated, 208 - 230V Volts, 60Hz Frequency Rating, AMP: 10.5A Full Load, 24.1A Locked Rotor, 3450 RPM, Horsepower: 3/4 hp, 77 ft. Maximum Head, 1-1/2 or 2 in. FNPT Discharge, 25 ft. Cord, Impeller: Multi-Vane, Semi-Open, Pump Body Material: Class 25 Cast Iron, PSC Class B Pump Motor, 1 PH Pump, Turn On/Turn Off Levels: Turn-on 13 in./Turn-off 6 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11.2 in.
Width	7 in.
Height	12.8 in.
AMP	10.5A Full Load, 24.1A Locked Rotor
Colour/Finish Name	Powder Coated
Discharge	1-1/2 or 2 in. FNPT
Frequency Rating	60Hz
Horsepower	3/4 hp
Impeller	Multi-Vane, Semi-Open
Maximum Feet of Head	77 ft.
Pump Body Material	Class 25 Cast Iron
Pump Motor Type	PSC Class B
Pump Phase	1 PH
RPM	3450 RPM
Temperature Rating	140F Fluid, 248F Thermal Overload, 266F Motor
Turn On/Turn Off Levels	Turn-on 13 in./Turn-off 6 in.
Volts	208 - 230V
