LIBLE103M32

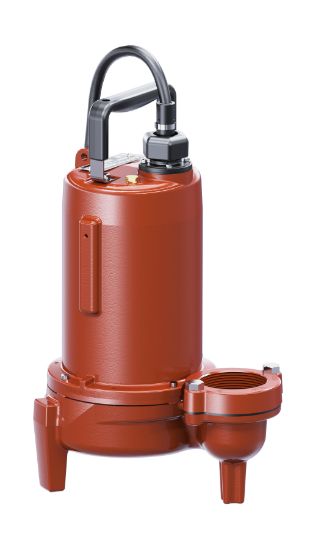

Liberty Pumps LE103M3-2 Cast Iron Manual Submersible Sewage Pump, 208 - 230V at 60Hz, 5.3A Full Load, 18.3A Locked Rotor, 1 hp, 25 ft. Cord, 1725 RPM, 160 gpm

Manufacturer: Liberty Pumps

$0.00

Qty:

Manual Submersible Sewage Pump, LE100 Series, 12-1/2 in. Length, 9 in. Width, 18.9 in. Height, Material: Cast Iron, AMP: 5.3A Full Load, 18.3A Locked Rotor, Colour/Finish Name: Powder Coated, 25 ft. Cord, Discharge Size: 3 in., Flow Rate: 160 gpm, Horsepower: 1 hp, Impeller: 2-Vane, Semi-Open, Material Type: Class 25, PSC Class B Pump Motor, Pump Mounting: Freestanding, 3 PH Pump, RPM: 1725 RPM, 208 - 230V Volts, Fitting Size 1: 2 in. Solid Handling, 60Hz Frequency Rating, 39 ft. Maximum Head, Temperature Rating: 140F Liquid, 266F Stator, Discharge Connection: Flanged

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12-1/2 in.
Width	9 in.
Height	18.9 in.
Material	Cast Iron
AMP	5.3A Full Load, 18.3A Locked Rotor
Colour/Finish Name	Powder Coated
Discharge Connection	Flanged
Discharge Size	3 in.
Fitting Size 1	2 in. Solid Handling
Frequency Rating	60Hz
Horsepower	1 hp
Impeller	2-Vane, Semi-Open
Material Type	Class 25
Maximum Feet of Head	39 ft.
Pump Motor Type	PSC Class B
Pump Mounting	Freestanding
Pump Phase	3 PH
RPM	1725 RPM
Temperature Rating	140F Liquid, 266F Stator
Volts	208 - 230V
