LIBLSGX202A

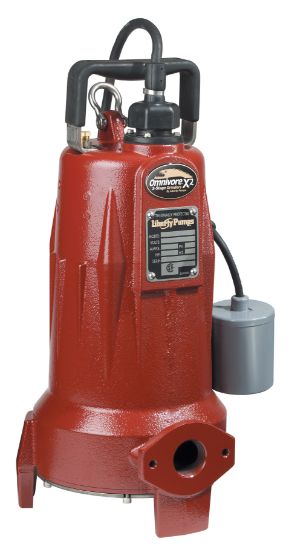

Liberty Pumps LSGX202A, 2 HP, Grinder Pump, 1 PH, 208-230V, 25' Cord, 1-1/4" Discharge, Auto

Manufacturer: Liberty Pumps

$0.00

Qty:

Omnivore Automatic Submersible Grinder Pump, LSGX200 Series, 9.54 in. Length, 9.34 in. Width, 19.66 in. Height, Material: Cast Iron, Discharge Size: 1-1/4 in., Flow Rate: 38 gpm, Horsepower: 2 hp, 185 ft. Maximum Head, Maximum Temperature: 140F Liquid, 275F Thermal Overload, 140C Stator, Capacitor Start Class B Pump Motor, Pump Mounting: Freestanding, 1 PH Pump, 2 Pump Stage, RPM: 3450 RPM, 208 - 230V at 60 Hz, 208 - 230V Volts, AMP: 15A Full Load, 53A Locked Rotor, 25 ft. Cord, Colour/Finish Name: Powder Coated, Discharge Connection: NPT (Flanged)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9.54 in.
Width	9.34 in.
Height	19.66 in.
Material	Cast Iron
AMP	15A Full Load, 53A Locked Rotor
Colour/Finish Name	Powder Coated
Discharge Connection	NPT (Flanged)
Discharge Size	1-1/4 in.
Horsepower	2 hp
Maximum Feet of Head	185 ft.
Maximum Temperature	140F Liquid, 275F Thermal Overload, 140C Stator
Pump Motor Type	Capacitor Start Class B
Pump Mounting	Freestanding
Pump Phase	1 PH
Pump Stage	2
RPM	3450 RPM
VAC at 60 Hz	208 - 230V
Volts	208 - 230V
