LIBLSGX202M

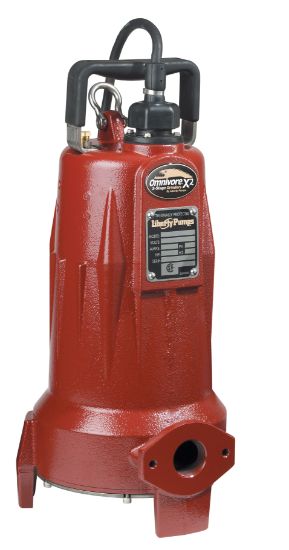

Liberty Pumps Omnivore LSGX202M Cast Iron High Head Manual Submersible Grinder Pump, 208 - 230V at 60Hz, 15A, 53A Locked Rotor, 1 PH, 2 hp, 25 ft. Cord, 38 gpm

Manufacturer: Liberty Pumps

$0.00

Qty:

Omnivore Manual High Head Submersible Grinder Pump, LSGX200 Series, 9.54 in. Length, 9-1/2 in. Width, 19-1/2 in. Height, Discharge Configuration: Horizontal, Flow Rate: 38 gpm, Horsepower: 2 hp, Impeller: Back Vane, 185 ft. Maximum Head, Maximum Temperature: 140F Liquid, 221F Thermal Overload, Pump Body Material: Cast Iron, PSC Class B Pump Motor, 1 PH Pump, 2 Pump Stage, RPM: 3450 RPM, Turn On/Turn Off Levels: Turn-on 15 in./Turn-off 8 in., 208 - 230V at 60 Hz, 1-1/4 in. FNPT Discharge, AMP: 15A, 53A Locked Rotor, 25 ft. Cord, Colour/Finish Name: Powder Coated

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9.54 in.
Width	9-1/2 in.
Height	19-1/2 in.
AMP	15A, 53A Locked Rotor
Colour/Finish Name	Powder Coated
Discharge	1-1/4 in. FNPT
Horsepower	2 hp
Impeller	Back Vane
Maximum Feet of Head	185 ft.
Maximum Temperature	140F Liquid, 221F Thermal Overload
Pump Body Material	Cast Iron
Pump Motor Type	PSC Class B
Pump Phase	1 PH
Pump Stage	2
RPM	3450 RPM
Turn On/Turn Off Levels	Turn-on 15 in./Turn-off 8 in.
VAC at 60 Hz	208 - 230V
