LIG505300

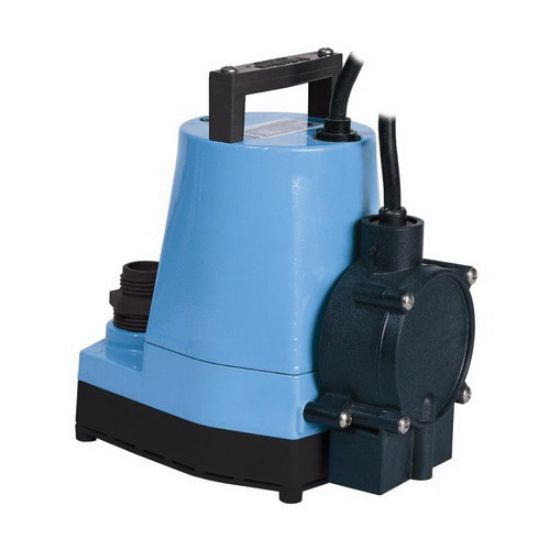

Little Giant Water Wizard 5-ASP Epoxy Coated Cast Aluminum Automatic Submersible Pump, 115V at 60Hz, 1 PH, 5A Full Load, 6.4A Start, 380W, 1/6 hp, 10 ft. Cord, 1200 gph at 1 ft.

Manufacturer: Little Giant

$0.00

Qty:

Water Wizard Piggyback Diaphragm Switch Automatic Submersible Pump, 5 Series, Model: 5-ASP, 7-3/4 in. Length, 4.13 in. Width, 7.78 in. Height, AMP: 5A Full Load, 6.4A Start, 1 in. FNPT Discharge, Flow Rate: 1200 gph at 1 ft., Horsepower: 1/6 hp, Impeller: Semi-Open, Pump Body Material: Cast Aluminum, Shaded Pole Pump Motor, 1 PH Pump, Specifications - UL Listed: Yes, 115V Volts, 26.3 in. Shut Off, Cord Entry: 10 ft. SJTW, Colour/Finish Name: Epoxy Coated, 60Hz Frequency Rating, 380W Watts, 11.4 psi Pressure Rating, Temperature Rating: 120F Liquid, Turn On/Turn Off Levels: Turn-on 6 - 9 in./Turn-off 1 - 4 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7-3/4 in.
Width	4.13 in.
Height	7.78 po
AMP	5A Full Load, 6.4A Start
Colour/Finish Name	Epoxy Coated
Discharge	1 in. FNPT
Frequency Rating	60Hz
Horsepower	1/6 hp
Impeller	Semi-Open
Pressure Rating	11.4 psi
Pump Body Material	Cast Aluminum
Pump Motor Type	Shaded Pole
Pump Phase	1 PH
Shut Off	26.3 in.
Specifications - UL Listed	Yes
Temperature Rating	120F Liquid
Turn On/Turn Off Levels	Turn-on 6 - 9 in./Turn-off 1 - 4 in.
Volts	115V
Watts	380W
