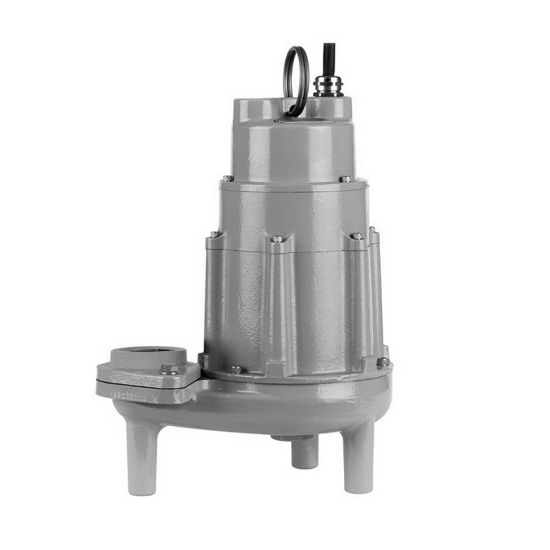

520200 20E-CIM PUMP

Little Giant 20E-CIM Cast Iron Effluent Pump, 230V at 60Hz, 16.4A Full Load, 31A Start, 2 hp, 20 ft. Cord, 3200 RPM, 135 gpm at 20 ft.

Manufacturer: Little Giant

$0.00

Qty:

Effluent Pump, 20E Series, Model: 20E-CIM, 12.93 in. Length, 8.42 in. Width, 17-3/4 in. Height, Material: Cast Iron, AMP: 16.4A Full Load, 31A Start, Colour/Finish Name: Epoxy Coated, 20 ft. Cord, Discharge Size: 2 in., Flow Rate: 135 gpm at 20 ft., Horsepower: 2 hp, Impeller: Vortex, PSC Pump Motor, 1 PH Pump, RPM: 3200 RPM, 230V Volts, Fitting Size 1: 3/4 in. Solid Handling, 60Hz Frequency Rating, 110 ft. Maximum Head, Temperature Rating: 140F Liquid, Discharge Connection: NPT, 3872W Power Rating, 47.6 psi Pressure Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12.93 in.
Width	8.42 in.
Height	17-3/4 in.
Material	Cast Iron
AMP	16.4A Full Load, 31A Start
Colour/Finish Name	Epoxy Coated
Discharge Connection	NPT
Discharge Size	2 in.
Fitting Size 1	3/4 in. Solid Handling
Frequency Rating	60Hz
Horsepower	2 hp
Impeller	Vortex
Maximum Feet of Head	110 ft.
Power Rating	3872W
Pressure Rating	47.6 psi
Pump Motor Type	PSC
Pump Phase	1 PH
RPM	3200 RPM
Temperature Rating	140F Liquid
Volts	230V
