LIG558281

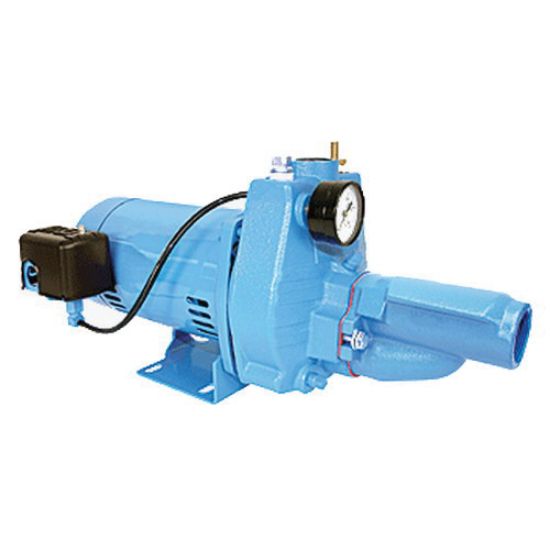

Little Giant JPC-050-C Cast Iron Shallow/Deep Well Convertible Jet Pump, 115/230V at 60Hz, 1 PH, 9/4.5A, 1/2 hp, 11.1 gpm at 20 psi Discharge Shallow Well

Manufacturer: Little Giant

$0.00

Qty:

Shallow/Deep Well Convertible Jet Pump, JPC Series, Model: JPC-050-C, 18.78 in. Length, 9 in. Width, 10 in. Height, AMP: 9/4.5A, Discharge Size: 1 in. NPT, Flow Rate: 11.1 gpm at 20 psi Discharge Shallow Well, Horsepower: 1/2 hp, Lift Capacity: 25 ft. Shallow Well, 80 ft. Deep Well, Pressure - Maximum: 76.2 psi at 5 ft. Suction Lift Shallow Well, 85 psi at 20 ft. Suction Lift Deep Well, Pump Body Material: Cast Iron, 1 PH Pump, 115/230V Volts, 60Hz Frequency Rating, Suction: 1-1/4 in., Shutoff Head: 176 ft.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	18.78 in.
Width	9 in.
Height	10 po
AMP	9/4.5A
Discharge Size	1 in. NPT
Frequency Rating	60Hz
Horsepower	1/2 hp
Lift Capacity	25 ft. Shallow Well, 80 ft. Deep Well
Pressure - Maximum	76.2 psi at 5 ft. Suction Lift Shallow Well, 85 psi at 20 ft. Suction Lift Deep Well
Pump Body Material	Cast Iron
Pump Phase	1 PH
Shut Off	176 ft.
Volts	115/230V
