LIG90411101

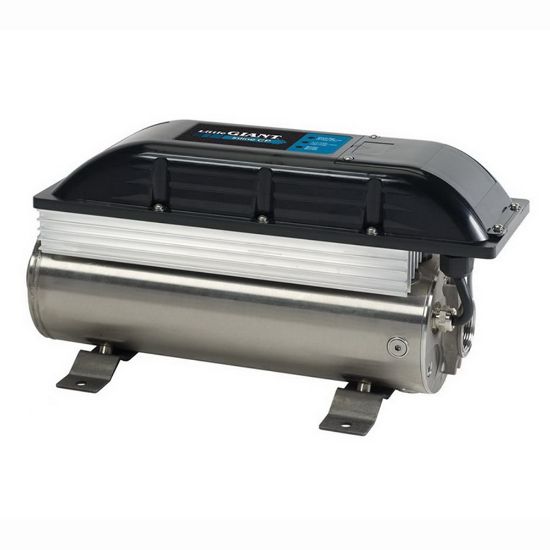

Little Giant 25LGIL1100N4 Stainless Steel 3-Stage In-Line Constant Water Pressure System, 230V at 60 Hz, 1 PH, 1.2 hp, Up to 35 gpm

Manufacturer: Little Giant

$0.00

Qty:

In-Line Constant Water Pressure System, Model: 25LGIL1100N4, 17.32 in. Length, 8 in. Width, 9.31 in. Height, Stainless Steel, AMP: 12A, End Connection 1: NPT, Fitting Size 1: 1-1/4 in., Up to 35 gpm Flow Rate, Horsepower: 1.2 hp, 104F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 25 - 80 psi, Dry Pump Motor Type, 1 PH Pump Phase, 3 Pump Stage, 3450 RPM, NEMA 4 Specifications - NEMA, 230V VAC at 60 Hz, 0.9kW Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, 0 - 100% RH Condensing, 104F Ambient Temperature Environmental Conditions

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	17.32 in.
Width	8 in.
Height	9.31 po
Material	Stainless Steel
AMP	12A
End Connection 1	NPT
Environmental Conditions	0 - 100% RH Condensing, 104F Ambient Temperature
Fitting Size 1	1-1/4 in.
Horsepower	1.2 hp
Impeller Material	Stainless Steel
Maximum Temperature	104F
Phase	1 PH
Power Rating	0.9kW
Pressure - Maximum	25 - 80 psi
Pump Motor Type	Dry
Pump Phase	1 PH
Pump Stage	3
RPM	3450 RPM
Shaft Material	Stainless Steel
Specifications - NEMA	NEMA 4
VAC at 60 Hz	230V
