B3LF LLC 1-1/2" IP BRS #150/600 FP B

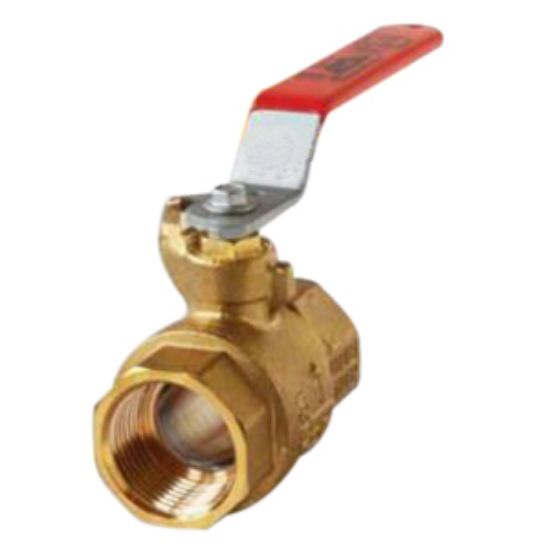

B-3-LF Lead Free Forged Brass Lever Handle Full Port 2-Piece Ball Valve, 1-1/2 in., Threaded

Manufacturer: M.A. Stewart

$0.00

Qty:

Ball Valve, B Series, Model: B-3-LF, 3.79 in. Width, Forged Brass, End Connection 1: Threaded, Pressure - Maximum: 150 psi WSP, 600 psi WOG, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, End Connection 2: Threaded, Specifications - ASTM: ASTM DS-561 C-28500 (AB), ASTM A-36, Valve Operator: Lever Handle, PTFE Valve Seat, Valve Size: 1-1/2 in., Zinc-Plated Steel Handle, Dimension: 5.57 in. Handle Length, Brass Valve Stem, PTFE Valve Packing, Recommended Valve Application: Gas, Specifications - ANSI: ANSI B1.20.1, ANSI Z21.15/CSA 9.1, Specifications - ASME: ASME B16.44/CGA-CR91-002, ASME B16.33/CGA-3.16, Lead Law Compliant: Yes, Specifications - NSF: NSF 61 and 372, Specifications - NSF Certified: Yes, 130 Flow Co-Efficient (Cv), Full Port Valve Port Opening, Valve Body Style: 2-Piece, Brass Ball Valve Trim, Opening Size: 1.57 in., 150psig Saturated Steam to 366F Working Pressure

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	3.79 in.
Material	Forged Brass
Dimension	5.57 in. Handle Length
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	130
Handle Material	Zinc-Plated Steel
Lead Law Compliant	Yes
Opening Size	1.57 in.
Pressure - Maximum	150 psi WSP, 600 psi WOG
Recommended Valve Application	Gas
Specifications - ANSI	ANSI B1.20.1, ANSI Z21.15/CSA 9.1
Specifications - ASME	ASME B16.44/CGA-CR91-002, ASME B16.33/CGA-3.16
Specifications - FM Approved	Yes
Specifications - NSF	NSF 61 and 372
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Valve Body Style	2-Piece
Valve Operator	Lever Handle
Valve Packing Material	PTFE
Valve Port Opening	Full Port
Valve Seat Material	PTFE
Valve Size	1-1/2 in.
Valve Stem Material	Brass
Valve Trim Material	Brass Ball
Working Pressure	150psig Saturated Steam to 366F
