B-4-LF LLC 3/4" CC BRS #150/600 BALL

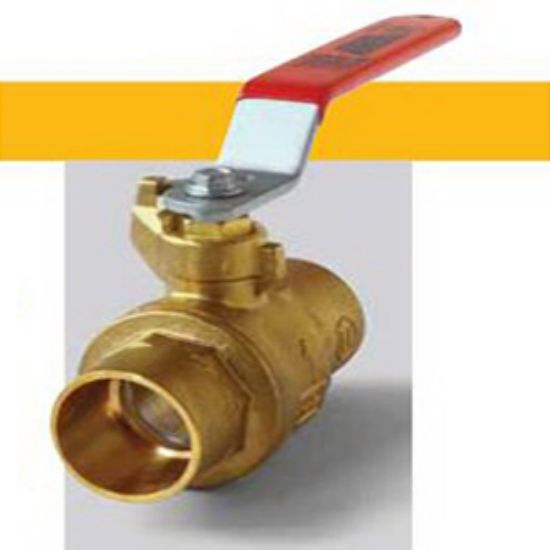

B-4-LF Lead Free Forged Brass Lever Handle Full Port 2-Piece Ball Valve, 3/4 in., Solder (Copper)

Manufacturer: M.A. Stewart

$0.00

Qty:

Ball Valve, B Series, Model: B-4-LF, 2.87 in. Width, Forged Brass, End Connection 1: Solder (Copper), Pressure - Maximum: 150 psi WSP, 600 psi WOG, End Connection 2: Solder (Copper), Specifications - ASTM: ASTM DS-561 C-28500 (AB), ASTM A-36, Valve Operator: Lever Handle, PTFE Valve Seat, Valve Size: 3/4 in., Zinc-Plated Steel Handle, Dimension: 2.26 in. Inlet Centre to Top of Handle, 3.6 in. Handle Length, Brass Valve Stem, PTFE Valve Packing, Specifications - ANSI: ANSI B16.22, Lead Law Compliant: Yes, Specifications - NSF: NSF 61 and 372, Specifications - NSF Certified: Yes, 30 Flow Co-Efficient (Cv), Full Port Valve Port Opening, Valve Body Style: 2-Piece, Brass Ball Valve Trim, Opening Size: 0.78 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2.87 in.
Material	Forged Brass
Dimension	2.26 in. Inlet Centre to Top of Handle, 3.6 in. Handle Length
End Connection 1	Solder (Copper)
End Connection 2	Solder (Copper)
Flow Co-Efficient (Cv)	30
Handle Material	Zinc-Plated Steel
Lead Law Compliant	Yes
Opening Size	0.78 in.
Pressure - Maximum	150 psi WSP, 600 psi WOG
Specifications - ANSI	ANSI B16.22
Specifications - NSF	NSF 61 and 372
Specifications - NSF Certified	Yes
Valve Body Style	2-Piece
Valve Operator	Lever Handle
Valve Packing Material	PTFE
Valve Port Opening	Full Port
Valve Seat Material	PTFE
Valve Size	3/4 in.
Valve Stem Material	Brass
Valve Trim Material	Brass Ball
