G1 1/2" 1000# THRD MAS 1 PC BODY

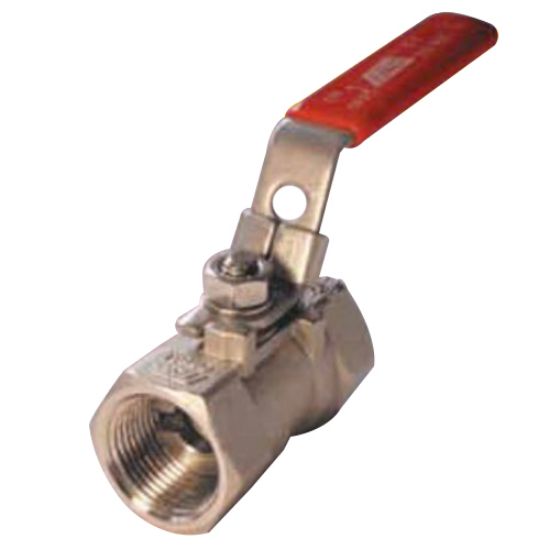

G1 1/2" 1000# Stainless Steel Lever Handle Reduced Port 1-Piece Ball Valve, Threaded

Manufacturer: M.A. Stewart

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2.244 in.
Material	Stainless Steel
Dimension	1.693 in. Inlet Centre to Top of Handle, 3.858 in. Handle Length
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	5.7
Handle Material	Stainless Steel
Opening Size	0.362 in.
Pressure - Maximum	1000 psi WOG
Specifications - ANSI	ANSI B1.20.1
Valve Body Style	1-Piece
Valve Operator	Lever Handle
Valve Packing Material	PTFE
Valve Port Opening	Reduced Port
Valve Seat Material	R-PTFE 15% Glass-Filled
Valve Size	1/2 in.
Valve Stem Material	Stainless Steel
Valve Trim Material	Stainless Steel Ball
Size	0.50"
Type	1 PC
Brand	MA Stewart
End	THRD
Pressure	1000-1500
Body	Stainless Steel
Port	RP
Temp	Stainless
Nace	NACE
