!!!NV LD4AELH 8" LUG DI BFLY VLV EPDM

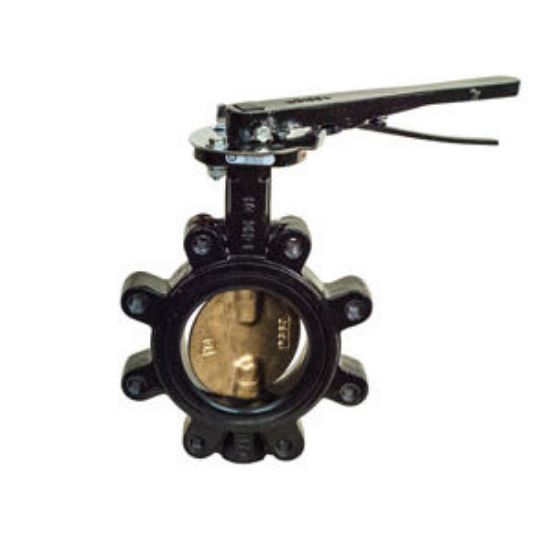

087-43148 Ductile Iron Lever Handle Lug Style Butterfly Valve, 8 in., Flanged

Manufacturer: M.A. Stewart

$0.00

Qty:

Butterfly Valve, D Series, 17.67 in. Length, Ductile Iron, End Connection 1: Flanged, End Connection 2: Flanged, Pressure - Maximum: 200 psi, Specifications - ASTM: ASTM A-536, ASTM A-582, ISO 5211 Specifications - ISO, Specifications - MSS: MSS SP-25 and SP-61, Valve Body Style: Lug, Aluminum Bronze Valve Disc, Valve Operator: Lever Handle, EPDM Valve Seat, Valve Size: 8 in., Dimension: 11-3/4 in. Actual Outside Diameter, 14.2 in. Centre to Top of the Handle, 416 Stainless Steel Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	17.67 in.
Material	Ductile Iron
Dimension	11-3/4 in. Actual Outside Diameter, 14.2 in. Centre to Top of the Handle
End Connection 1	Flanged
End Connection 2	Flanged
Pressure - Maximum	200 psi
Specifications - ISO	ISO 5211
Specifications - MSS	MSS SP-25 and SP-61
Valve Body Style	Lug
Valve Disc Material	Aluminum Bronze
Valve Operator	Lever Handle
Valve Seat Material	EPDM
Valve Size	8 in.
Valve Stem Material	416 Stainless Steel
