MASLD4SEG10

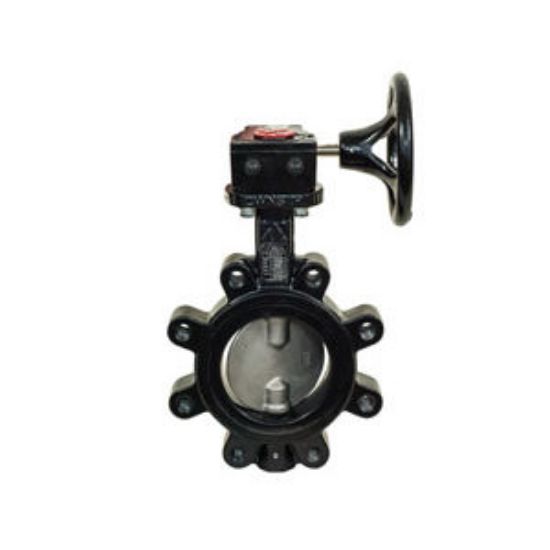

087-44369 Ductile Iron Gear Operator Lug Style Butterfly Valve, 10 in., Flanged

Manufacturer: M.A. Stewart

$0.00

Qty:

Butterfly Valve, D Series, 20.17 in. Length, Ductile Iron, End Connection 1: Flanged, End Connection 2: Flanged, Pressure - Maximum: 200 psi, Specifications - ASTM: ASTM A-536, ASTM A-582, ISO 5211 Specifications - ISO, Specifications - MSS: MSS SP-25 and SP-61, Valve Body Style: Lug, Stainless Steel Valve Disc, Valve Operator: Gear Operator, EPDM Valve Seat, Valve Size: 10 in., Dimension: 14-1/4 in. Actual Outside Diameter, 14.2 in. Centre to Top of the Handle, 416 Stainless Steel Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	20.17 in.
Material	Ductile Iron
Dimension	14-1/4 in. Actual Outside Diameter, 14.2 in. Centre to Top of the Handle
End Connection 1	Flanged
End Connection 2	Flanged
Pressure - Maximum	200 psi
Specifications - ISO	ISO 5211
Specifications - MSS	MSS SP-25 and SP-61
Valve Body Style	Lug
Valve Disc Material	Stainless Steel
Valve Operator	Gear Operator
Valve Seat Material	EPDM
Valve Size	10 in.
Valve Stem Material	416 Stainless Steel
