MCMFS634

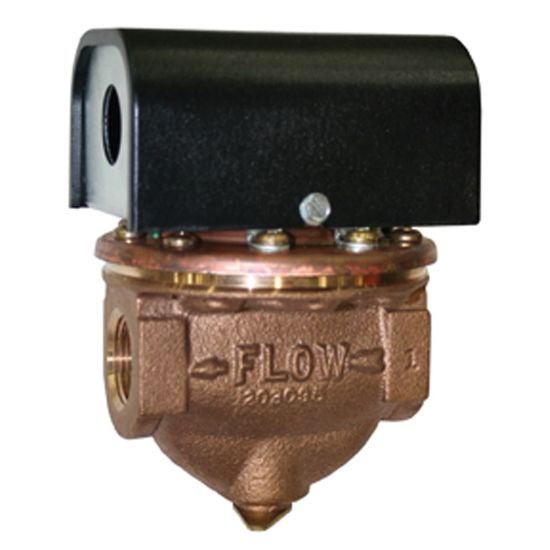

McDonnell & Miller FS6-3/4 Brass High Sensitivity Liquid Flow Switch, 120/240 VAC, 3/4 in. NPT, 100 psi

Manufacturer: McDonald Miller

$0.00

Qty:

High Sensitivity Liquid Flow Switch, Model: FS6-3/4, 3-23/32 in. Length, 3-3/4 in. Width, Material: Brass, AMP: 7.4/3.7A Full Load, 44.4/22.2A Locked Rotor, End Connection 1: NPT, Fitting Size 1: 3/4 in., Maximum Temperature: 225F, Pressure - Maximum: 100 psi, Specifications - UL Listed: Yes, 120/240 VAC Volts, Flow Rate: 16.62 - 27 gpm, Pilot Duty Rating: 125 VA at 120/240 VAC, Number of Poles: 1, Contact Form: SPDT

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-23/32 in.
Width	3-3/4 in.
Material	Brass
AMP	7.4/3.7A Full Load, 44.4/22.2A Locked Rotor
End Connection 1	NPT
Fitting Size 1	3/4 in.
Maximum Temperature	225F
Number of Poles	1
Pilot Duty Rating	125 VA at 120/240 VAC
Pressure - Maximum	100 psi
Specifications - UL Listed	Yes
Volts	120/240 VAC
