RB-122E LWC LOW LEVEL PROBE CONTROL

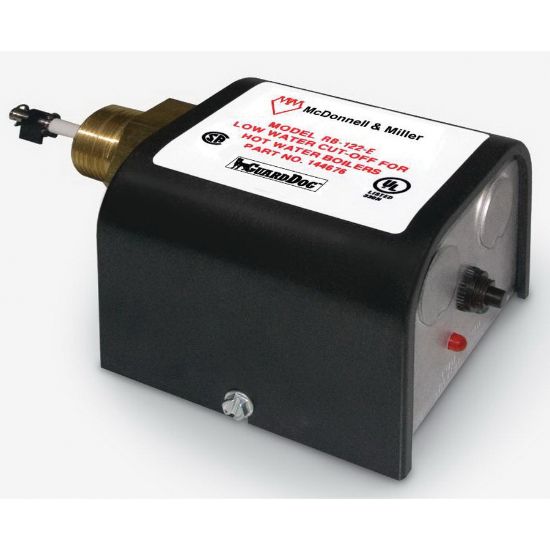

McDonnell & Miller GuardDog RB-122-E Electronic Conductance Low Water Cut-Off, 120 VAC, 3.1 VA, 160 psi

Manufacturer: McDonald Miller

$0.00

Qty:

GuardDog Electronic Conductance Low Water Cut-Off, Model: RB-122-E, 3-3/16 in. Length, 5-29/16 in. Width, 2-3/4 in. Height, AMP: 5.8A, 34.8A Locked Rotor, Pressure - Maximum: 160 psi, 120 VAC Volts, Maximum Temperature: 120F Ambient, 250F Water, Fitting Sizes: 3/4 in., NEMA 1 Enclosure, Connection Type: NPT, Pilot Duty Rating: 125 VA, Reset Type: Automatic, 3.1 VA Rating, 50/60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-3/16 in.
Width	5-29/16 in.
Height	2-3/4 po
AMP	5.8A, 34.8A Locked Rotor
Connection Type	NPT
Enclosure	NEMA 1
Fitting Sizes	3/4 in.
Frequency Rating	50/60Hz
Maximum Temperature	120F Ambient, 250F Water
Pilot Duty Rating	125 VA
Pressure - Maximum	160 psi
VA Rating	3.1
Volts	120 VAC
