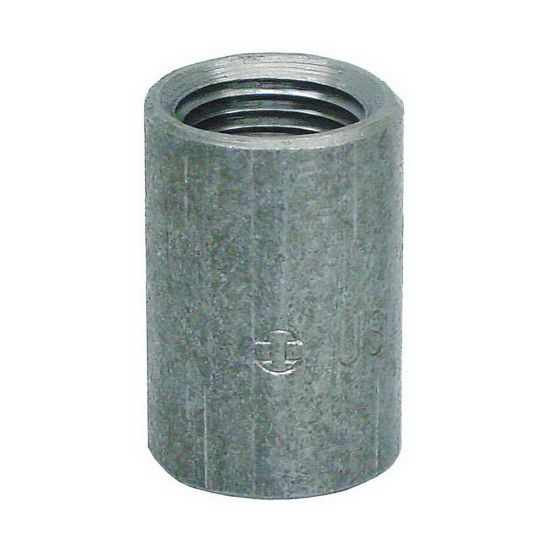

1/8 BLACK HALF CPLG MERCHANT STD

336 150# SCH STD Black Steel Straight Tapped Merchant Half Coupling, 1/8 in., FNPT

$0.00

Qty:

Straight Tapped Merchant Half Coupling, Model: 336, 11/32 in. Length, Material: Steel, Coating: Black, End Connection 1: FNPT, End Connection 2: FNPT, Fitting Size 1: 1/8 in., Fitting Size 2: 1/8 in., Maximum Temperature: -20 to 350F, Pressure - Maximum: 300 psi, Pressure Class: 150#, Specifications - ASME: ASME B16.3, Specifications - ASTM: ASTM A-865 and A-589, STD Schedule, Domestic Origin, Diameter - Outside 1: 0.563 in., 27 Thread per Inch

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11/32 in.
Material	Steel
Coating	Black
Diameter - Outside 1	0.563 in.
End Connection 1	FNPT
End Connection 2	FNPT
Fitting Size 1	1/8 in.
Fitting Size 2	1/8 in.
Maximum Temperature	-20 to 350F
Pressure - Maximum	300 psi
Pressure Class	150#
Schedule	STD
Specifications - ASME	ASME B16.3
Thread per Inch	27
