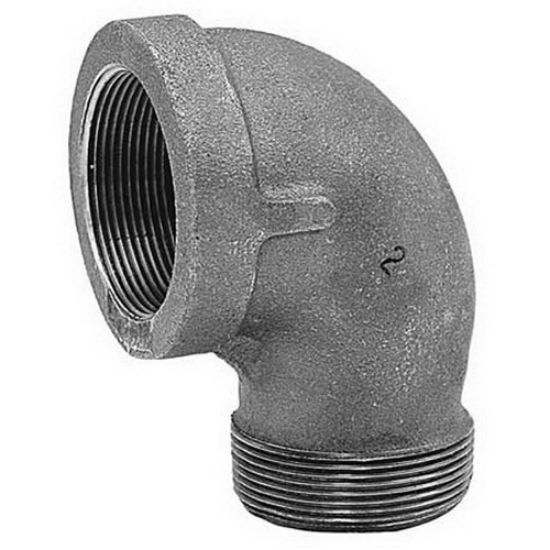

1 X 3/4" MXF BLK MALL 90 STREET ELBOW

1" X 3/4" X 90 Degree Black Malleable Street Elbow

$0.00

Qty:

Reducing Street Elbow, Model: 1103R, Material: Malleable Iron, 90 Degree Angle, Coating: Black, End Connection 1: FNPT, End Connection 2: MNPT, Fitting Size 1: 1 in., Fitting Size 2: 3/4 in., Pressure Class: 150#, Specifications - ASME: ASME B16.3, ASME B1.20.1+, Specifications - ASTM: ASTM A-197, Pressure - Maximum: 300 psi, Maximum Temperature: -20 to 150F, Other Physical Dimension: 1-3/8 x 2-1/16 in. Centre to End, STD Schedule, Domestic Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Malleable Iron
Angle	90 Degree
Coating	Black
End Connection 1	FNPT
End Connection 2	MNPT
Fitting Size 1	1 in.
Fitting Size 2	3/4 in.
Maximum Temperature	-20 to 150F
Pressure - Maximum	300 psi
Pressure Class	150#
Schedule	STD
Specifications - ASME	ASME B16.3, ASME B1.20.1+
