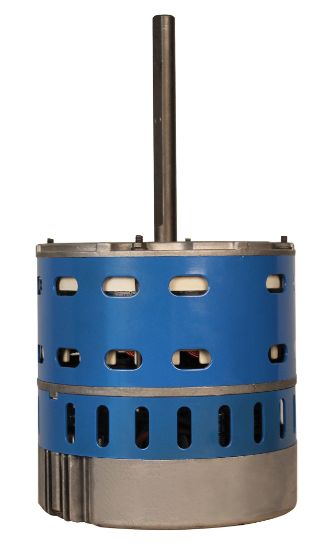

Picture of 10856 AZURE MTR VS 1/4 TO 1/2 HP D/D

10856 AZURE MTR VS 1/4 TO 1/2 HP D/D

Motors & Armatures 10856 Azure Digi-Motor 1/4 to 1/2 hp 1075 RPM 120/240V Single Phase Direct Drive Variable Speed Motor
Manufacturer: Motors & Armatures
$0.00
Azure Direct Drive Variable Speed and Constant Torque. Bluetooth Control -Free app (AZURE ECM) with Intuitive Drop down menus. Azure connects directly to OEM harnesses; additional module or adapter is not required. The app allows optimization of airflow even if ductwork is not optimal. 4 speeds plus 625 RPM constant fan mode. High efficiency 85%. Replaces A LOT of motors and Saves time and money! 16 Pin OEM Variable Speed ECM, PWM, 2.0, 2.3, 2.5 EON ; and Evergreen VS, Rescue EZ16 , Many* 4 Pin OEM Variable Speed ECM 3.0; and Evergreen VS, Constant Torque X13 , Endura Pro, SelecTech ; and Evergreen EM, Rescue EZ13 .
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 3.8;6.4
Diameter 5-1/2 in.
Frame Size 48 in.
Horsepower 1/2 hp
Maximum Temperature 131
Motor Enclosure Open Air Over
RPM 1075
Specifications - UL Listed Yes
Style Name Azure Digi-Motor
Temperature Range -4 to 131 Deg F
Volts 115/120/230/240V
Weight 11.30 lb
Product Type Other Motor Products
Fan Speeds 5
Phase Single Phase
