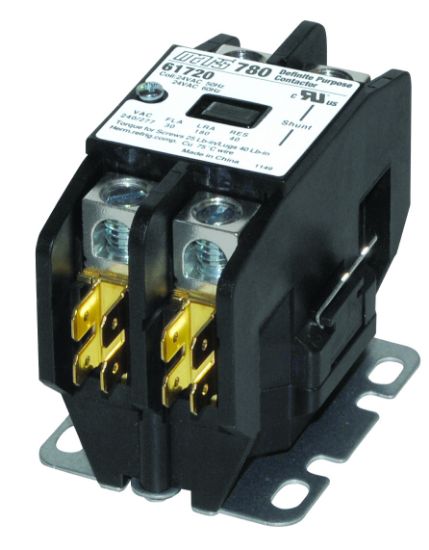

Picture of 61720 1P 30 AMP 24V COIL CONT.

61720 1P 30 AMP 24V COIL CONT.

Motors & Armatures 61720 30A 24V 1-Pole Definite Purpose Contactor with Shunt
Manufacturer: Motors & Armatures
$0.00
This 780 series 1-pole contactor with jumper wire has a push-to-test button. It measures 1-97/100 inches width x 3-15/79 inches height x 2-23/50 inches depth. The contactor has a 30A full load, non-inductive amperes of 40A, coil voltage of 24V at 50/60 Hz and a locked rotor of 180A at 240V, 150A at 480V and 120A at 600V. It features silver-cadmium oxide contacts, an enclosed body, quad quick connects, large arch window box lugs and Class H insulation on coils. The box lug termination contactor is UL-listed and meets ARI-780 and CSA standards.
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 30
Depth 2-23/50 in.
Height 3-15/79 in.
Specifications - UL Listed Yes
Style Name 780 Series
Volts 24V
Width 1-97/100 in.
Product Type Contactors
